• Country
• Germany

• Manufacturer / Brand
• Rafena Werke Radeberg, VEB; Radeberg (Ostd.)

• Year
• 1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 310645

• • Brand: VEB Rafena; Radeberg (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Material
• Metal case

• from Radiomuseum.org

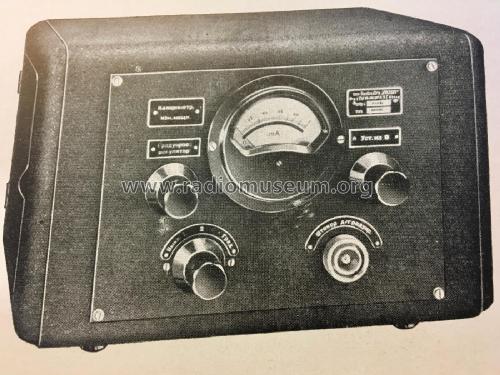

• Model: Kalorimetrischer Leistungsmesser KLM 602 - Rafena Werke Radeberg, VEB;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 345 x 210 x 220 mm / 13.6 x 8.3 x 8.7 inch

• Notes

• Wellenbereich  10...100 cm ( 3.000 MHz  bis 300 MHz )

  Messbereich I: 50 mW ...1,0 W;   II: 100 mW ....2 W







• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
