Electronic Color AC6313

Electronic Color AC6313; Rank-Arena, Horsens (ID = 2037227) Television
Electronic Color AC6313; Rank-Arena, Horsens (ID = 422463) Television Electronic Color AC6313; Rank-Arena, Horsens (ID = 1770888) Television
Use red slider bar for more.

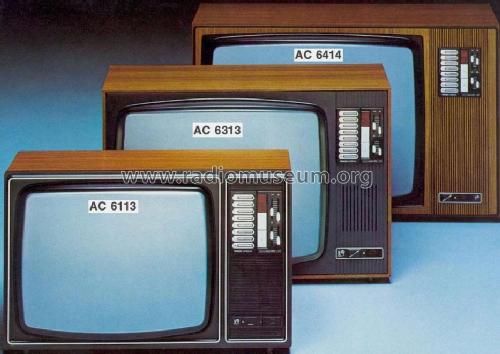

Electronic Color AC6313; Rank-Arena, Horsens (ID = 422463) Television
Rank-Arena, Horsens: Electronic Color AC6313 [Television] ID = 422463 933x662
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electronic Color AC6313, Rank-Arena, Horsens:
Original-Prospect

Country:  Denmark
Manufacturer / Brand:  Rank-Arena, Horsens
Brand

Arena
Year: 1977 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 560TB22
Semiconductors (the count is only for transistors) 68:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.2 cm = 4 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Electronic Color AC6313 - Rank-Arena, Horsens
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 660 x 460 x 450 mm / 26 x 18.1 x 17.7 inch
Notes 56 cm 110° inline CRT, PAL color TV, CCIR B/G standard VHF/UHF tuner with 8 sensor presets and AFC, the last prepared for VCR use, ultrasonic remote commander, 65 diodes and rectifiers, 12 IC, 21 kV high voltage, 138 watt power consumption, tripple splitted chassis, nut-tree cabinet finish.
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
