In-Line Amplifier HF-1530

In-Line Amplifier HF-1530; Rauland Corporation; (ID = 422404) Ampl/Mixer In-Line Amplifier HF-1530; Rauland Corporation; (ID = 2075982) Ampl/Mixer
In-Line Amplifier HF-1530; Rauland Corporation; (ID = 2075986) Ampl/Mixer In-Line Amplifier HF-1530; Rauland Corporation; (ID = 2075988) Ampl/Mixer

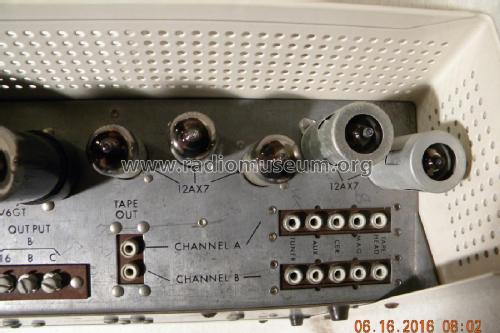

In-Line Amplifier HF-1530; Rauland Corporation; (ID = 2075993) Ampl/Mixer In-Line Amplifier HF-1530; Rauland Corporation; (ID = 2075994) Ampl/Mixer
In-Line Amplifier HF-1530; Rauland Corporation; (ID = 2075995) Ampl/Mixer
Use red slider bar for more.
In-Line Amplifier HF-1530; Rauland Corporation; (ID = 422404) Ampl/Mixer
Rauland Corporation;: In-Line Amplifier HF-1530 [Ampl/Mixer] ID = 422404 450x257
Select picture or schematic to display from thumbnails on the right and click for download.
For model In-Line Amplifier HF-1530, Rauland Corporation; Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  Rauland Corporation; Chicago
Year: 1961 Category: Audio Amplifier or -mixer
Valves / Tubes 10: 12AX7 12AX7 12AX7 12AX7 12AX7 6V6GT 6V6GT 6V6GT 6V6GT 5AS4A
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: In-Line Amplifier HF-1530 - Rauland Corporation; Chicago
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Integrated amplifier, stereo.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 527 Folder 10 4-1961)
