For model 57E Table, Raycophone Ltd., Sydney:
eBay advertisement by seller “ancientreplicasaustralia”, Item Number 283429353570. Please contact Radio Museum to provide more complete photo credit information or request removal.

Country:  Australia
Manufacturer / Brand:  Raycophone Ltd., Sydney
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner

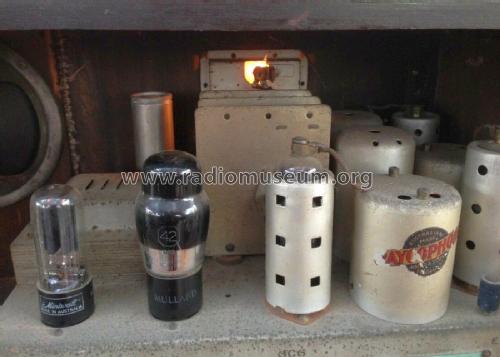

Valves / Tubes 5: 6A7 6D6 6C6 42 80
Main principle Super-Heterodyne (Super in general); 1 AF stage(s); Anode bend detection
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 57E [Table] - Raycophone Ltd., Sydney
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 24 x 12 x 9 inch / 610 x 305 x 229 mm
Price in first year of sale 20.00 Aus£

Model page created by Stuart Irwin. See "Data change" for further contributors.
