RG2102

RG2102; Raymond marca / (ID = 1275105) Radio RG2102; Raymond marca / (ID = 1275106) Radio
RG2102; Raymond marca / (ID = 1275107) Radio RG2102; Raymond marca / (ID = 1275108) Radio

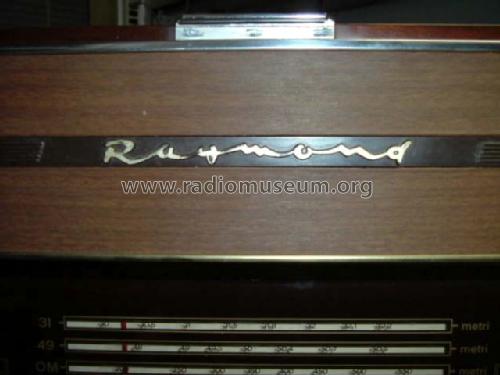

RG2102; Raymond marca / (ID = 1275109) Radio RG2102; Raymond marca / (ID = 1275110) Radio
RG2102; Raymond marca / (ID = 1275111) Radio
Use red slider bar for more.
RG2102; Raymond marca / (ID = 1275105) Radio
Raymond marca /: RG2102 [Radio] ID = 1275105 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RG2102, Raymond (marca / brand) - see also Magnadyne; Torino

Country:  Italy
Manufacturer / Brand:  Raymond (marca / brand) - see also Magnadyne; Torino
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC82 6E4_Magnadyne 6P6_Magnadyne 6P1_Magnadyne 16TP8 16TP8
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
Loudspeaker 2 Loudspeakers / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: RG2102 - Raymond marca / brand - see
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 565 x 330 x 390 mm / 22.2 x 13 x 15.4 inch
Notes Il giradischi è un PE66 con cambiadischi 16-33-45-78 giri

Model page created by Raffaele Pedrini. See "Data change" for further contributors.
