Transistor Radio 8TP2 Ch= 8RT1 brown

Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 126478) Radio
Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 689574) Radio Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 1370302) Radio
Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 1370303) Radio Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 1370900) Radio
Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 1370901) Radio Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 1370902) Radio
Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 1370910) Radio
Use red slider bar for more.
Transistor Radio 8TP2 Ch= 8RT1; Raytheon Mfg. Co.; (ID = 689574) Radio
Raytheon Mfg. Co.;: Transistor Radio 8TP2 Ch= 8RT1 [Radio] ID = 689574 524x356
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Radio 8TP2 Ch= 8RT1 brown, Raytheon Mfg. Co.; Cambridge, MA

Country:  United States of America (USA)
Manufacturer / Brand:  Raytheon Mfg. Co.; Cambridge, MA
Year: 1955 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: CK761 CK761 CK760 CK760 CK760 CK722 CK722 CK722
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Transistor Radio 8TP2 Ch= 8RT1 [brown] - Raytheon Mfg. Co.; Cambridge,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.25 x 7 x 2.75 inch / 235 x 178 x 70 mm
Notes

Just a few weeks after Regency (IDEA) has launched the first transistor radio, Regency TR-1 with 4 transistors, Raytheon brought its much bigger 8TP with the models 8TP-1 (tan leather), 8TP-2 (brown leather), 8TP-3 (beige leather) and 8TP-4 (red leather) - all in 1955 and with 8 transistors really outperforming TR1. This was the second transistor radio built in series in the world, followed by SONY models (e.g. TR-55). But the first SONY to appear in the USA was TR-63 in 1957. See also the pocket transistor radios from GE as models 675, 676, 677 and 678 depending in color from 1955. The 8TP1 was immediately followed by a 7 transistor with the same model names!

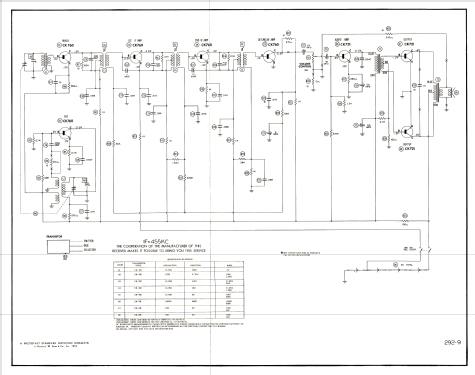

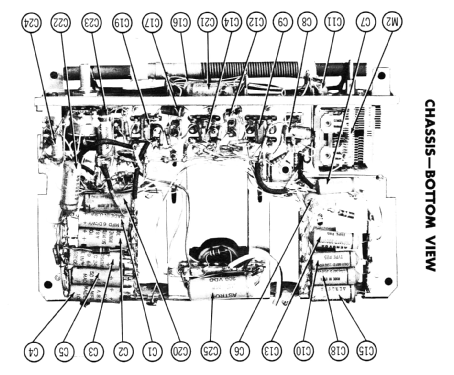

8 Raytheon transistors (see the two schematics on the model page for 8TP1): 2 of CK761 (oscillator, mixer), 3 of CK760 (IF and detector) and 3 of CK722 for audio (driver, push-pull).
The first series had 5 x CK760 and 3 x CK721.

Price in first year of sale 80.00 $
Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Mentioned in The Collector's Guide To Antique Radios 2. Edition

Model page created by Egon Penker. See "Data change" for further contributors.
