• Year
  • 1952
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 88632
    • alternative name: RCA Manufacturing || Victor Talking Machine

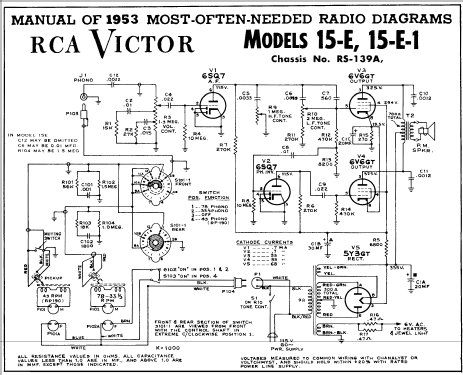

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification; 2 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 10 W (unknown quality)
  • from Radiomuseum.org
  • Model: 15-E Ch= RS-139A - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 21.5 x 17.875 x 19.875 inch / 546 x 454 x 505 mm
  • Notes
  • The RCA 15E is an AC operated 5 tube Record Player with 1 Speed Automatic Record Changer (for 45 RPM records) and 2 speed manual turntable (for 33-1/3 and 78 RPM records). Has Qty(1) PM 12" speaker. Uses Record Changer RP-190A-1, with record capacity up to Qty(14) records. Manual turntable will play records up to 12" in diameter. Uses Qty(2) #51 dial lamps. Has push-pull audio output stage.
  • Net weight (2.2 lb = 1 kg)
  • 43 lb (43 lb 0 oz) / 19.522 kg
