1-X-1E "The Colorflair" Ch= RC-1202A
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC 50 to 60 cycles, 110 to 120V or DC 110 to 120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.75 W (1 W max.)
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 1-X-1E "The Colorflair" Ch= RC-1202A - RCA RCA Victor Co. Inc.; New
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.07 x 6.375 x 4.6 inch / 281 x 162 x 117 mm

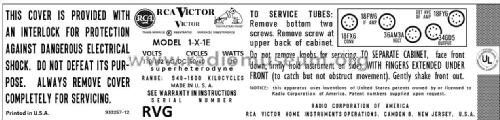

The RCA 1-X-1E is an AC/DC operated 5 tube BC band receiver. BC band tuning range is 540 to 1600kHz. Uses Qty(1) Elliptical PM 3" x 5" speaker. Has built-in ferrite antenna. Cabinet color is Shell White.
The RCA datasheet "1960 No. 22" groups the following models:
Model Series Model Number Chassis Cabinet Color 1-X-1 1-X-1E RC-1202A Shell White 1-X-1 1-X-1F RC-1202A Pink 1-X-1 1-X-1H RC-1202A Turquoise 1-X-1 1-X-1K RC-1202A Honey Beige
Further information in this article: "The RCA chassis RC-1202 including suffixes" - explains the many suffixes for chassis RC-1202.
- Net weight (2.2 lb = 1 kg)
- 2.75 lb (2 lb 12 oz) / 1.249 kg
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 21, 1961
- Mentioned in
- Photofact Folder, Howard W. SAMS (Date 11/1961, Set 554, Folder 10)
- Literature/Schematics (1)
- - - Manufacturers Literature (RCA Datasheet "1960 No. 22", dated 3-27-61)
- Literature/Schematics (2)
- - - Manufacturers Literature (RCA Datasheet "1960 No. 18", dated 8-26-60)
- Literature/Schematics (3)
- Beitman Radio Diagrams, Vol. 21, 1961 (Page 134)
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
Here you find 4996 models, 2952 with images and 4042 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Forum contributions about this model: RCA RCA Victor Co.: 1-X-1E "The Colorflair" Ch= RC-1202A
Threads: 1 | Posts: 2
The RCA chassis RC-1202 with many suffixes.
This thread is for being able to tell about them at ONE place and link this to the models concerned. At the moment we show the following suffixes:
A, B, C, E, F, L, M, N, a familiy with K, P, R and T, models with U or W and with AA, AB, AC, AD, AE, AF, AH. There are probably more.
The most important:
The model creators have sometimes misinterpreted the information on the schematics. I deal with that for the following models - and hope others will follow and clear further models including to link them to here. This is then the information that the problem has been solved. I deal with the suffixes A, B, C and E only - which represent in fact 20 different models:
Beitman R-21 from 1961 brings the same schematic for 1-X-1 Series, 1-X-3 Series and 1-X-4 Series with Chassis No. RC-1202A, RC-1202B and Chassis No. RC-1202C. Photofact folder date Nov. 1961, set 554, folder 10 shows the following model series with the same schematic:
1C1E, 1C2EM, 1C2FE, 1C2JE for Chassis RC-1202E (has an other tuning capacitor)
1X1E, 1X1F, 1X1H, 1X1K for Chassis RC-1202A
1X2E (picture), 1X2FE, 1X2JE, 1X2LE with Chassis RC-1202A
1X3E, 1X3EH, 1X3FE, 1X3KE with Chassis RC-1202B and
1X4E, 1X4EJ, 1X4HE, 1X4JM with Chassis RC-1202C.
The manufacturer is RCA Victor Radio & "Victrola" Div., Radio Corp. of America, Camden 8, NJ.
They are small AC operated 5 tube AM receivers and
models of the 1C-series include electric clock.
Power supply is 110-120 Volts AC, 60 cycles, rating is 19 watts and tuning range is 540 to 1600 kc. The drive cord stringing is for models 1X3 and 1X4 only. There are 20 different cabinets (incl. colors), all with an oval loudspeaker of 3 x 5 inch.
For the start we keep it simple by naming the generic models without suffix and adding the suffixes for a given chassis. But when we know more about the suffixes (presumably the different colors), we will add the models for the different pictures in color.
Ernst Erb, 11.May.11
