21-S-5252 "Wister" Ch= KCS88B

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1955
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 242888
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
  • Power out
  • 1.5 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-S-5252 "Wister" Ch= KCS88B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Notes
  • The RCA 21-S-5252 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis KCS88B, VHF tuner KRK22D and picture tube 21ZP4B. Uses Qty(1) PM 5" speaker. Has auxiliary audio input jack to permit use of an external record playing attachment. Cabinet color is Natural Walnut.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)

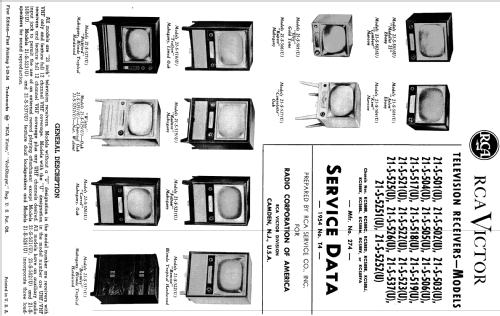

  • - - Manufacturers Literature (RCA Datasheet 1954 No. T4 Dated 5-29-54)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
