23590-2

23590-2 ; RCA RCA Victor Co. (ID = 979455) Radio

23590-2 ; RCA RCA Victor Co. (ID = 979457) Radio

23590-2 ; RCA RCA Victor Co. (ID = 979458) Radio
Use red slider bar for more.
23590-2 ; RCA RCA Victor Co. (ID = 979455) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 78 6A7 77 43 12Z3
Main principle Superheterodyne (common); ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 23590-2 - RCA RCA Victor Co. Inc.; New
External source of data Ernst Erb

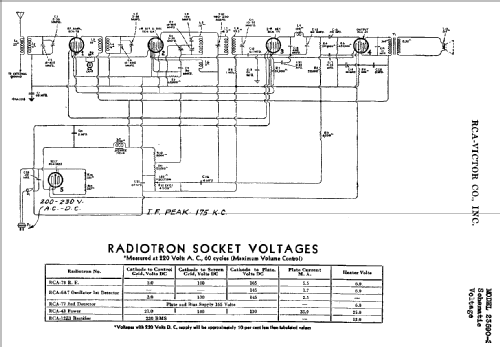

Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
