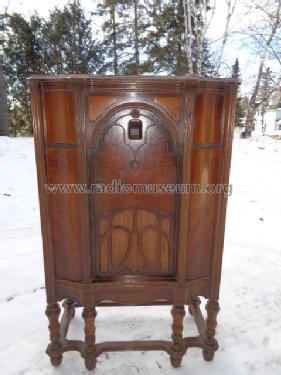

261 ; RCA RCA Victor Co. (ID = 1958032) Radio 261 ; RCA RCA Victor Co. (ID = 1958034) Radio
261 ; RCA RCA Victor Co. (ID = 1958036) Radio 261 ; RCA RCA Victor Co. (ID = 1958038) Radio
261 ; RCA RCA Victor Co. (ID = 1958040) Radio 261 ; RCA RCA Victor Co. (ID = 1958042) Radio
261 ; RCA RCA Victor Co. (ID = 1958044) Radio 261 ; RCA RCA Victor Co. (ID = 1958047) Radio
Use red slider bar for more.
261 ; RCA RCA Victor Co. (ID = 712320) Radio
RCA RCA Victor Co.: 261 [Radio] ID = 712320 380x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model 261, RCA (RCA Victor Co. Inc.); New York (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 58 58 56 58 58 56 56 2A5 2A5 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 261 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 26 x 46 x 14 inch / 660 x 1168 x 356 mm
Notes Six-legged lowboy. Police band 1400-2800 kc. Chassis very similar to General Electric K105 with different cabinet design.
Price in first year of sale 99.50 USD
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Mentioned in Pre-War Consoles
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series
