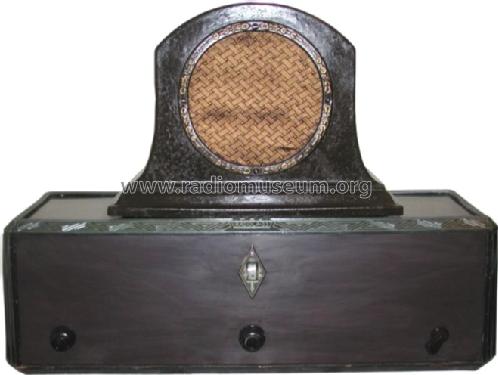

Radiola 33AC AR-784 table model

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993426) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993427) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993428) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993429) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993430) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993431) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993432) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993433) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993434) Radio

Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 993435) Radio
Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 731151) Radio Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 806866) Radio
Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1104920) Radio Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1104921) Radio
Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1104922) Radio Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1177612) Radio
Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1177614) Radio Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1177616) Radio
Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1177617) Radio Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 1177618) Radio
Use red slider bar for more.
Radiola 33AC AR-784; RCA RCA Victor Co. (ID = 731151) Radio
RCA RCA Victor Co.: Radiola 33AC AR-784 [Radio] ID = 731151 899x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 33AC AR-784 table model, RCA (RCA Victor Co. Inc.); New York (NY):
RADIOLA 33 CASE METAL

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UX226 UX226 UX226 UY227 UX226 UX171A UX280
Main principle TRF with regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Radiola 33AC AR-784 [table model] - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 640 x 200 x 200 mm / 25.2 x 7.9 x 7.9 inch
Notes

Also DC and console models.
Matching speaker model 100B.
This model has 2 versions, one designed for 50-60 cycle operation and another version designed for 25-40 cycle operation.

Net weight (2.2 lb = 1 kg) 15.950 kg / 35 lb 2.1 oz (35.132 lb)
Price in first year of sale 77.50 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Radio Manufacturers of the 1920's, Vol. 3
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series
Literature/Schematics (3) Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931) (1-28)
Literature/Schematics (4) Radiola, the golden Age of RCA (p.315 ff)
