4C544 Ch= RC-1145

4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 121146) Radio

4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 121147) Radio
4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 466235) Radio 4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 466238) Radio
4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 466236) Radio 4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 466237) Radio
Use red slider bar for more.
4C544 Ch= RC-1145; RCA RCA Victor Co. (ID = 466235) Radio
RCA RCA Victor Co.: 4C544 Ch= RC-1145 [Radio] ID = 466235 600x312
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4C544 Ch= RC-1145, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4C544 Ch= RC-1145 - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)

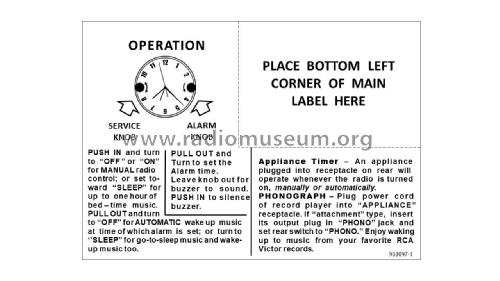

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 310 x 170 x 145 mm / 12.2 x 6.7 x 5.7 inch
Notes

This model RCA Victor 4C544 uses the chassis Ch=RC-1145.

The Beitman schematic shown above is used for different chassis numbers representing differences in technical aspects and cabinet form.

For each chassis there exist several model numbers reflecting the colors.

In detail, the Beitman schematic tells us:

Chassis RC-1145 was an AC clock radio available in the color models 4C541(maroon), 4C542(ivory), 4C543(dark green), 4C544(red), 4C545(black) and 4C547(white).

Chassis RC-1144 was also an AC clock radio similar to RC-1145, but the radio-phono switch S2 and outlet J2 were omitted and it had a metalized grille. It was available in the color models  4C531(maroon), 4C532(ivory), 4C533(dark green) 4C534(red) and 4C535(black).

Chassis RC-1146 (Photofact date 3-55, set 271, folder 10) was a radio without clock and therefore operable with either AC or DC. The rest oft the schematic was similar (identical?) to RC-1145 but the cabinet was quite different with top right thumbwheel dial and left front horizontal grill bars. It was available in the color models 4X551(maroon), 4X552(ivory), 4X553(dark green), 4X554(red) and 4X555(black).

Chassis RC-1150  (Photofact date 12-55, set 279, folder 12) was also a radio without clock similar to RC-1145 but with again a very different appearance using a "front see-through dial panel" over a large checkered grill area and 3 knobs. It was available in the color models 5X560(black?), 5X562(ivory) and 5X564(red).

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Source of data Beitman Radio Diagrams, Vol. 15, 1955
Mentioned in Collector's Guide to Antique Radios (6th edition)

Model page created by Egon Penker. See "Data change" for further contributors.
