4X ; RCA RCA Victor Co. (ID = 955540) Radio

4X ; RCA RCA Victor Co. (ID = 955541) Radio

4X ; RCA RCA Victor Co. (ID = 955542) Radio

4X ; RCA RCA Victor Co. (ID = 955544) Radio

4X ; RCA RCA Victor Co. (ID = 955546) Radio

4X ; RCA RCA Victor Co. (ID = 955547) Radio

4X ; RCA RCA Victor Co. (ID = 218395) Radio
4X ; RCA RCA Victor Co. (ID = 2311653) Radio 4X ; RCA RCA Victor Co. (ID = 2311285) Radio
4X ; RCA RCA Victor Co. (ID = 121330) Radio 4X ; RCA RCA Victor Co. (ID = 121334) Radio
4X ; RCA RCA Victor Co. (ID = 121336) Radio 4X ; RCA RCA Victor Co. (ID = 121337) Radio
4X ; RCA RCA Victor Co. (ID = 121338) Radio 4X ; RCA RCA Victor Co. (ID = 1570650) Radio
4X ; RCA RCA Victor Co. (ID = 2418911) Radio 4X ; RCA RCA Victor Co. (ID = 2418912) Radio
Use red slider bar for more.
4X ; RCA RCA Victor Co. (ID = 2311653) Radio
RCA RCA Victor Co.: 4X [Radio] ID = 2311653 1400x1901
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4X, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6F7 43 25Z5
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: 4X - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 8.25 x 10.875 x 5.625 inch / 210 x 276 x 143 mm
Net weight (2.2 lb = 1 kg) 9 lb (9 lb 0 oz) / 4.086 kg
Price in first year of sale 28.00 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

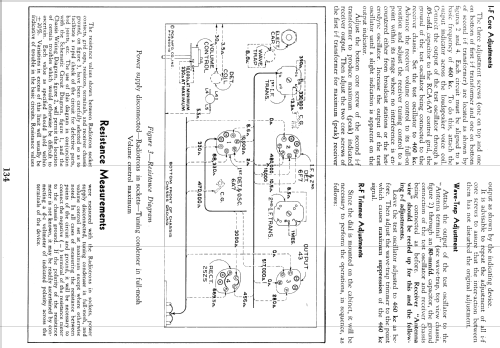

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98

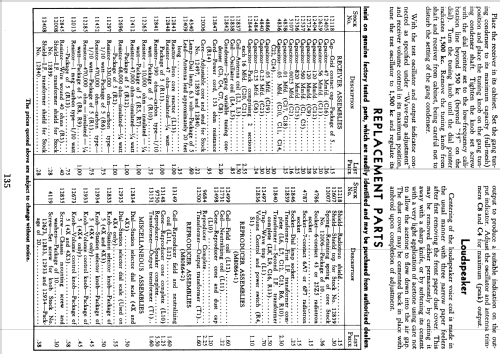

Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series
Literature/Schematics (3) Cathedral & Tombstone Radios (page 210.)


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Here you find 4907 models, 2888 with images and 3989 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
