• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53687

• • alternative name: RCA Manufacturing || Victor Talking Machine

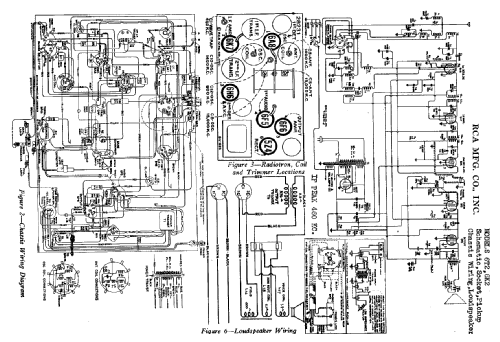

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6H6 6F5 6F6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / See Notes Volt

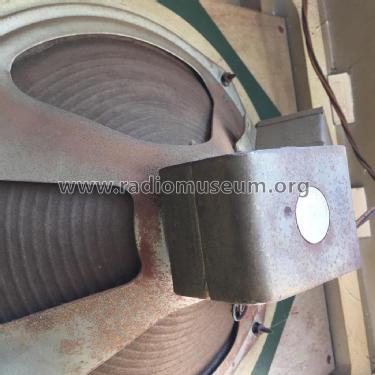

• Loudspeaker
• Ø 12 inch = 30.5 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6K10 - RCA RCA Victor Co. Inc.; New

• Shape
• Console with any shape - in general

• Notes

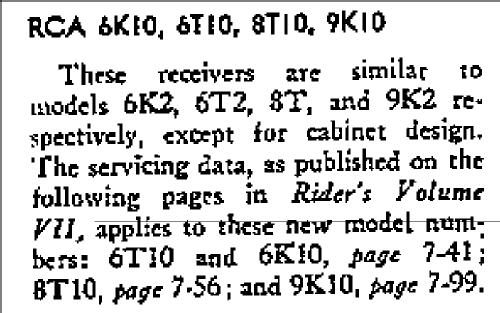

• This model is similar to model 6K2 (First Production version) except for the cabinet design (Uses same chassis and speaker as 6K2).
  This model has 3 power supply ratings:
  Rating A...105-125V, 50-60 Cycles
  Rating B...105-125V, 25-60 Cycles
  Rating C...100-130; 140-160; 195-250V, 40-60 Cycles


• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Pre-War Consoles

• Literature/Schematics (1)
• Rider's Perpetual, Volume 8 = 1937 and before (Changes 8-4)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
