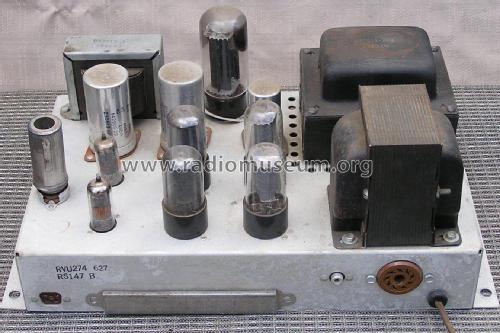

7-HF-2 "The Mark ll" Ch= RC-1154C, RS-147B

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 252433
    • alternative name: RCA Manufacturing || Victor Talking Machine

 Technical Specifications

  • Number of Tubes
  • 0
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 115 Volt
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 7-HF-2 "The Mark ll" Ch= RC-1154C, RS-147B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 34.75 x 36 x 18.5 inch / 883 x 914 x 470 mm
  • Notes

  • The RCA 7HF2 is an AC operated combination AM/FM Receiver with record changer.  AM band tuning range is 540 to 1600kHz.  FM tuning range is 88 to 108MHz.

  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (RCA Service Data 1956 No. 16 dated 8-10-56)
  • Author
  • Model page created by João-Afonso Santos. See "Data change" for further contributors.
