8QU5C Ch= RC-443B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53850
-
- alternative name: RCA Manufacturing || Victor Talking Machine

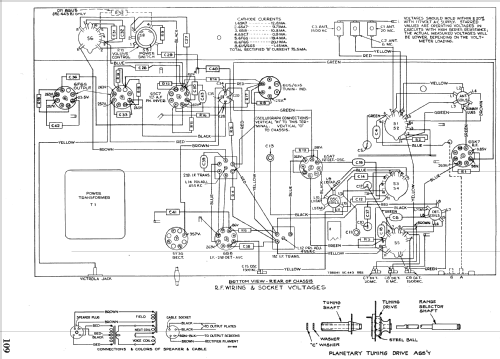

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8QU5C Ch= RC-443B - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 20 x 17.375 x 14.25 inch / 508 x 441 x 362 mm
- Notes
- Crystal pickup.
This model has 4 power supply ratings:
Rating A5...105-125V, 50 Cycles
Rating A6...105-125V, 60 Cycles
Rating C5...105-125;200-250V, 50 Cycles
Rating C6...105-125;200-250V, 60 Cycles
- Net weight (2.2 lb = 1 kg)
- 46 lb (46 lb 0 oz) / 20.884 kg
- Price in first year of sale
- 110.00 USD
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Machine Age to Jet Age III
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
