RCA RCA Victor Co.: 911K Ch= RC-335 [Radio] ID = 961210 600x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 911K Ch= RC-335, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6K7 6A8 6J7 6K7 6U5 6H6 6F5 6F5 6F6 6F6 5T4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
Power out 10 W (unknown quality)
from Radiomuseum.org Model: 911K Ch= RC-335 - RCA RCA Victor Co. Inc.; New
Material Wooden case

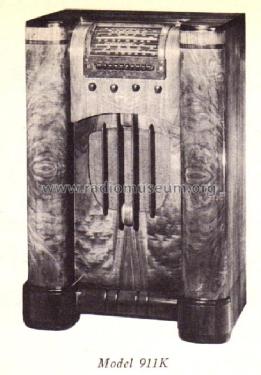

Shape Console with Push Buttons.
Dimensions (WHD) 28.5 x 41.5 x 14.5 inch / 724 x 1054 x 368 mm
Notes

BC and 4x SW spread bands. 3 pilot lamps: one Mazda 47, 6.8 v and two Mazda 44 6.3 v.

Price in first year of sale 150.00 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

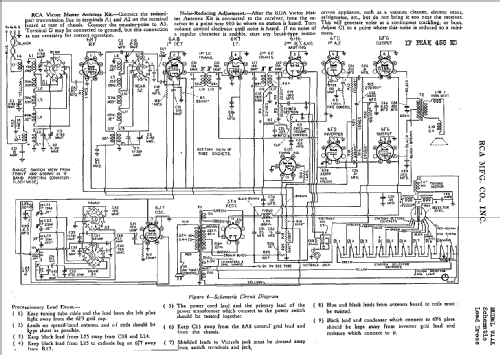

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Pre-War Consoles

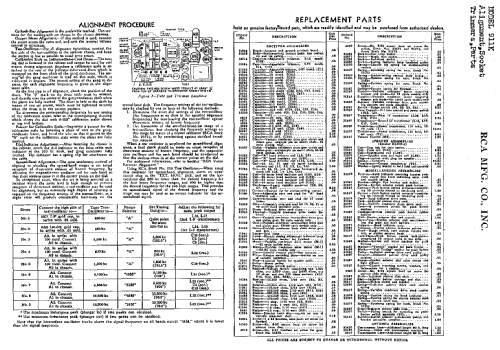

Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Notes for 1938, pages 169-176)
