95T1 Ch= RC-323

95T1 Ch= RC-323; RCA RCA Victor Co. (ID = 1674741) Radio 95T1 Ch= RC-323; RCA RCA Victor Co. (ID = 1675343) Radio
95T1 Ch= RC-323; RCA RCA Victor Co. (ID = 1675346) Radio
Use red slider bar for more.

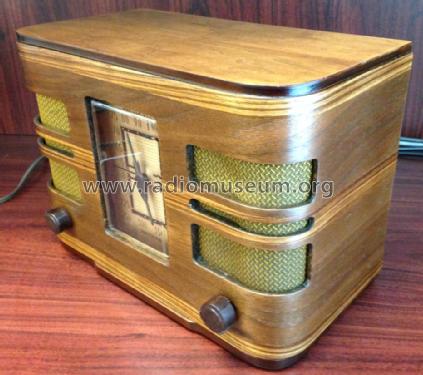

95T1 Ch= RC-323; RCA RCA Victor Co. (ID = 1674741) Radio
RCA RCA Victor Co.: 95T1 Ch= RC-323 [Radio] ID = 1674741 933x826
Select picture or schematic to display from thumbnails on the right and click for download.
For model 95T1 Ch= RC-323, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner

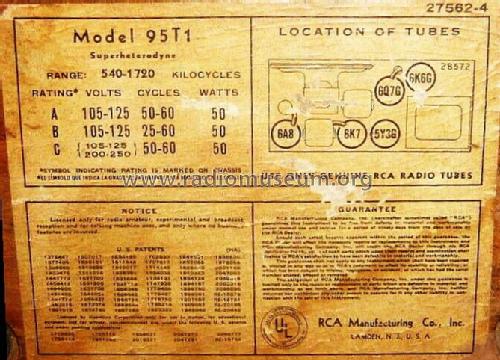

Valves / Tubes 5: 6A8 6K7 6Q7G 6K6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 1 W (2 W max.)
from Radiomuseum.org Model: 95T1 Ch= RC-323 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 11 x 8 x 5 inch / 279 x 203 x 127 mm
Notes

95T and 95T1 only differ in cabinet styling.

Net weight (2.2 lb = 1 kg) 9.5 lb (9 lb 8 oz) / 4.313 kg
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series (1938 p. 105)
Literature/Schematics (2) Rider's Perpetual, Volume 9 = 1938 and before (RCA 9-104)

Model page created by Dale Allen. See "Data change" for further contributors.
