- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53983
-
- alternative name: RCA Manufacturing || Victor Talking Machine
From RCA Victor Service Notes for 1938
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

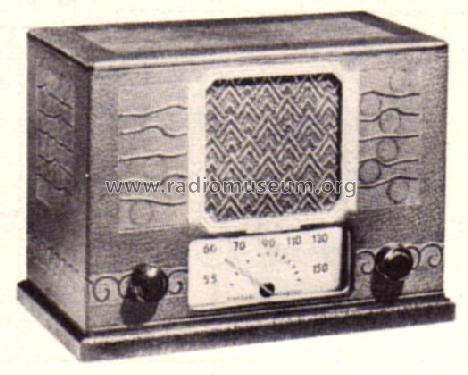

- Model: 95XL - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 10.2 x 7.5 x 5.7 inch / 259 x 191 x 145 mm
- Notes
- Dial lamp Mazda 40, 6.3 v.
- External source of data
- Ernst Erb
- Source of data
- Table Top Radios Vol. 1 Stein 98
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98
