• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89745
    • alternative name: RCA Manufacturing || Victor Talking Machine

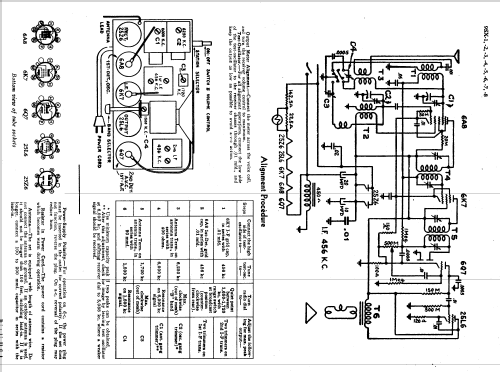

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 9SX-6 "Little Nipper" - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 8 x 4.2 x 4.3 inch / 203 x 107 x 109 mm
  • Notes
  • Moulded cabinet, blue body, onix front, blue knobs.
  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Literature/Schematics (1)

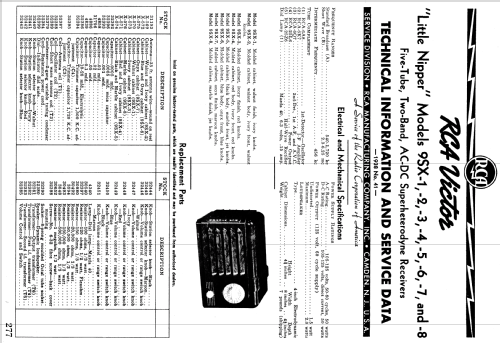

  • RCA Victor Instruments Service Notes 1938
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
