A101 Ch= RC-1096 Early Production

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374702) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374704) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374705) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374706) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374707) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374709) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374710) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374711) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374712) Radio

A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374713) Radio
A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374669) Radio A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1806063) Radio
Use red slider bar for more.
A101 Ch= RC-1096; RCA RCA Victor Co. (ID = 1374669) Radio
RCA RCA Victor Co.: A101 Ch= RC-1096 [Radio] ID = 1374669 933x999
Select picture or schematic to display from thumbnails on the right and click for download.

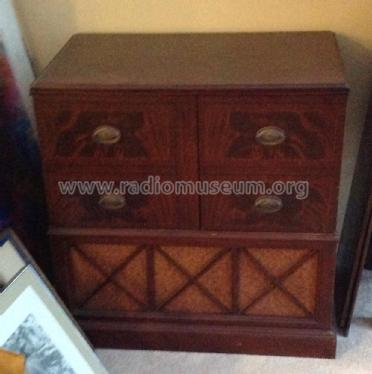

For model A101 Ch= RC-1096 Early Production, RCA (RCA Victor Co. Inc.); New York (NY):
Picture from RCA databook

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6CB6 6J6 6BA6 6AU6 6AV6 6C4 6AL6 6V6GT 6V6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 60 cycles, 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 8 W (9 W max.)
from Radiomuseum.org Model: A101 Ch= RC-1096 [Early Production] - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 32 x 32 x 19.75 inch / 813 x 813 x 502 mm
Notes

The RCA A101 is an AC operated combination automatic phonograph and BC/FM band receiver.  Has both a 45 RPM turntable and a 33 1/3, 78 RPM turntable.  The 45 RPM turntable used is model RP-190-2, which holds up to ten 7 inch fine groove records.  The 33 1/3, 78 RPM turntable used in this model is 960282-4 or 960282-5, which hold up to ten 12 inch or twelve 10 inch records. Has push-pull output stage.  Has built-in AM and FM antenna's, with provision for connecting external AM and/or external FM antenna.

The BC band frequency range is 540 to 1600kHz.  The FM band frequency range is 88 to 108MHz.  Uses Qty(3) #51 lamps, two for the dial and one for the jewel.

This early production version uses chassis RC-1096.  The late production version uses chassis RC-1096B, which has different values of C21, R20 in the volume control circuit and different values of C42, C44 in the output circuit.  The late production model also uses the 960284-1 or 960284-2 record changer in place of the 960282-4 or 960282-5 record changer.

The chassis and schematic used for RCA model A101 is also used in RCA model A108.

Net weight (2.2 lb = 1 kg) 97 lb (97 lb 0 oz) / 44.038 kg
External source of data Ernst Erb

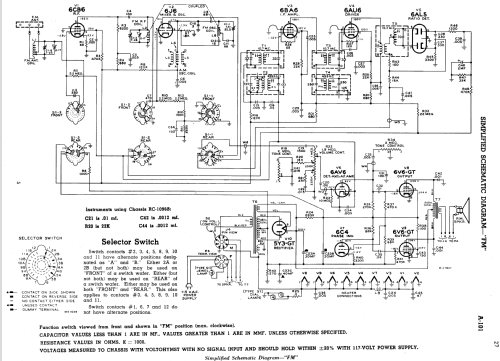

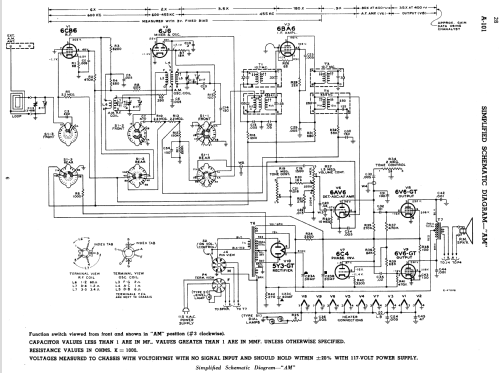

Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 11, 1951 (Page 109)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 23-32)
Literature/Schematics (3) Rider's Perpetual, Volume 22 = covering 1951 (Riders RCA 22-1 to 22-10)
