RCA RCA Victor Co.: A106 Ch= RC-622 [Radio] ID = 1374670 933x874
Select picture or schematic to display from thumbnails on the right and click for download.
For model A106 Ch= RC-622, RCA (RCA Victor Co. Inc.); New York (NY):
Picture from RCA databook

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6BJ6 6J6 6BA6 6AU6 6AL5 6AV6 6AV6 6V6GT 6V6GT 6X5GT
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 60 cycles, 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 5 W (6.4 W max.)
from Radiomuseum.org Model: A106 Ch= RC-622 - RCA RCA Victor Co. Inc.; New

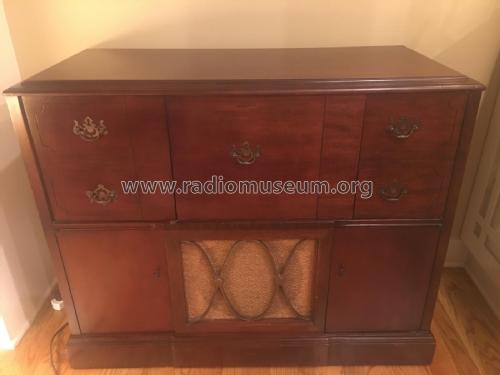

Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 39.75 x 31.5 x 17.5 inch / 1010 x 800 x 445 mm
Notes

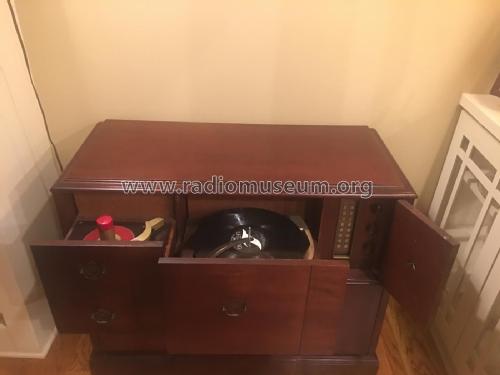

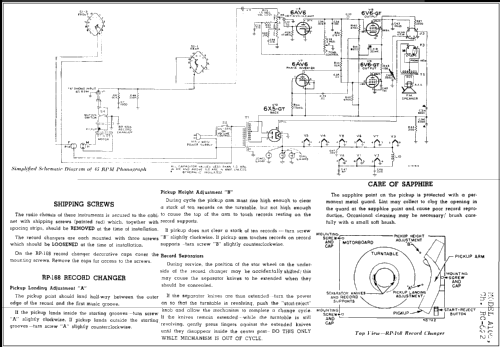

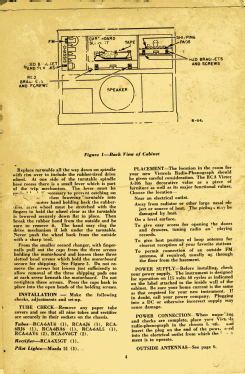

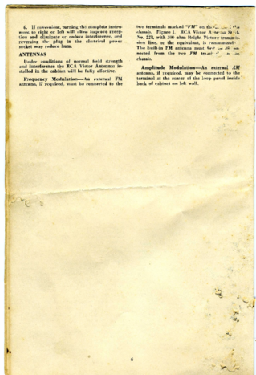

The RCA A106 is an AC operated combination automatic phonograph and BC/FM band receiver.  Has both a 45 RPM turntable and a 33 1/3, 78 RPM turntable.  The 45 RPM turntable used is model RP-168, which holds up to ten 7 inch fine groove records.  The 33 1/3, 78 RPM turntable used in this model is 960285-1 , which hold up to ten 12 inch or twelve 10 inch records. Has push-pull output stage.  Has built-in AM and FM antenna's, with provision for connecting external AM and/or external FM antenna.

The BC band frequency range is 540 to 1600kHz.  The FM band frequency range is 88 to 108MHz.  Uses Qty(3) #51 lamps, two for the dial and one for the jewel.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

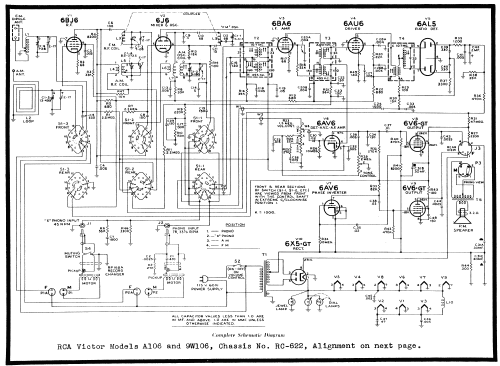

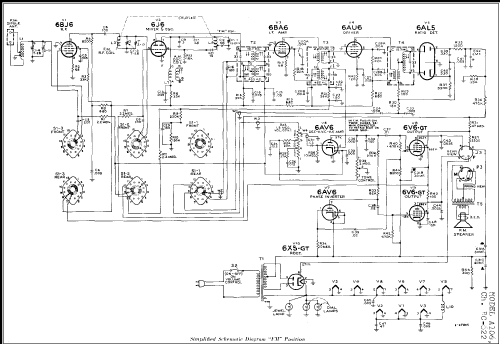

Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950 (Pages 131 to 132)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 33-40)
Literature/Schematics (3) Rider's Perpetual, Volume 21 = Copyright 1950 (Riders RCA 21-17 to 21-26)
