AM-FM Tuner 9-T-1 Ch= RC-1155A

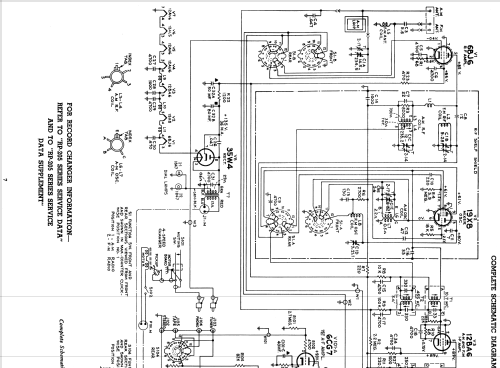

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880414) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880415) Radio

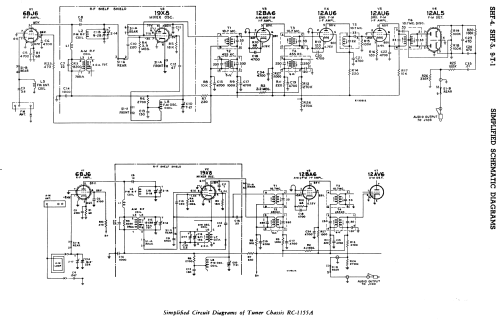

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880416) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880417) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880418) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880419) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880420) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880421) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880422) Radio

AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880423) Radio
AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880424) Radio
Use red slider bar for more.
AM-FM Tuner 9-T-1 Ch= RC-1155A; RCA RCA Victor Co. (ID = 1880424) Radio
RCA RCA Victor Co.: AM-FM Tuner 9-T-1 Ch= RC-1155A [Radio] ID = 1880424 355x765
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Tuner 9-T-1 Ch= RC-1155A, RCA (RCA Victor Co. Inc.); New York (NY):
Picture from RCA datasheet

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BJ6 19X8 12BA6 12AU6 12AU6 12AL5 12AV6 35W4
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 115 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM-FM Tuner 9-T-1 Ch= RC-1155A - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Notes

The RCA 9-T-1 is an AC operated 8 Tube mono FM-AM Tuner. The AM frequency tuning range is 540-1600kHz.  The FM frequency tuning range is 88-108MHz.

This tuner was sold as an option that could be installed into the RCA SHF-5 High-Fidelity Record Player.  The RCA SHF-4 was a combination radio-phonograph that was a combination of a SHF-5 with a factory installed 9-T-1 tuner.

Mentioned in - - Manufacturers Literature (RCA Victor Service Data Datasheet - File 1957 No. 16)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 387, folder 13 dated 2-58)

Model page created by John Kusching. See "Data change" for further contributors.
