For model AR-88-F, RCA (RCA Victor Co. Inc.); New York (NY):
RKK Radio Museum --- .rkk-museum.ru

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1942–1945 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 13: 6SG7 6J5 6SA7 6H6 6SJ7 6V6GT VR150 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 150; 210; 240 / 6 & 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: AR-88-F - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Rack
Dimensions (WHD) 490 x 280 x 490 mm / 19.3 x 11 x 19.3 inch

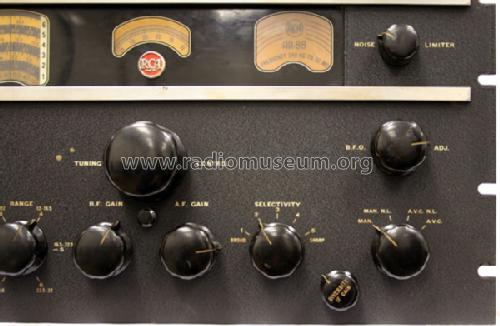

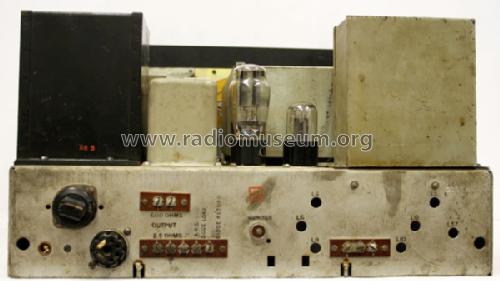

Notes Specialized communications receiver with crystal filter and additional IF gain control for diversity reception. Continuous frequency coverage of 535 kHz to 32 MHz in 6 switched bands. Rack version only, used in RCA DR-89 diversity reception sets (3 receivers in common rack with monitoring unit, tone keyer and loudspeaker assy). Tube types above are listed only once. DR-89 racks have been supplied in quantities during WWII to the UK and the USSR by Lend-Lease Act in 1942-1945. AR-88-F receivers were quite common at USSR amateur radio operators in 1950s.
Source of data Communications Receivers
Mentioned in -- Original-techn. papers. (Instructions IB-25927-2. TM11-889. Diversity Receeiving Equipment (RCA Model DR-89). December 1945.)
Literature/Schematics (1) Shortwave Receivers - Past & Present (3rd ed.) ((1) Diversity Communication Receiver, Type DR-89. RCA Victor, Camden, NJ, USA. (2) TM11-889)

Model page created by Valery Gromov. See "Data change" for further contributors.
