For model AR-88-LF, RCA (RCA Victor Co. Inc.); New York (NY):

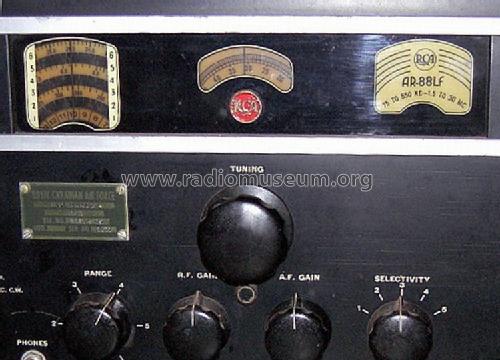

AR-88LF from the collection of RA3AA

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1942–1945 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 13: 6SG7 6J5 6SA7 6H6 6SJ7 6K6GT VR150 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 735 kHz; 14 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 117; 234 / 6 & 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: AR-88-LF - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 490 x 280 x 490 mm / 19.3 x 11 x 19.3 inch
Notes

General purpose communications receiver with crystal filter, low frequency version of AR-88 (AR-88D). Frequency coverage 73 kHz to 550 kHz (Bands 1 and 2) and 1,480 kHz to 30,500 kHz (Bands 3 to 6). Tube types above are listed only once. Manufactured in Canada, used by Royal Canadian Air Force. Also supplied to the UK and the USSR by Lend-Lease Act in 1942-1945. See also CR-91 (CR-91A).

Net weight (2.2 lb = 1 kg) 41 kg / 90 lb 4.9 oz (90.308 lb)
Literature/Schematics (1) Reception Sets AR88D and AR88LF. EMER E772, Telecommunications. 31 Mar 53.

Model page created by Valery Gromov. See "Data change" for further contributors.
