- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54199
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Picture from David Cross
Picture from David Cross
Picture from David Cross

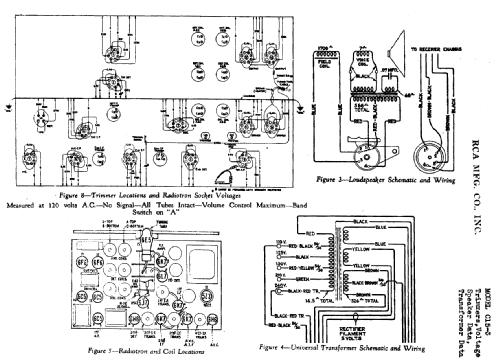

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C15-4 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
-
It is stated in Riders Vol. 7, pg. RCA 7-156, that the C15-4 is identical to the RCA C15-3 with a metal rectifier.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
