K80 Ch= RC-415C With Loop Antenna

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 979648) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 979649) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 979650) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 979651) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 979652) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 60444) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 894176) Radio

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 894178) Radio
K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 1935304) Radio K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 1935305) Radio
K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 1935306) Radio
Use red slider bar for more.

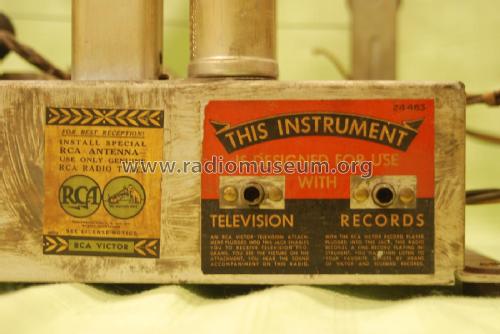

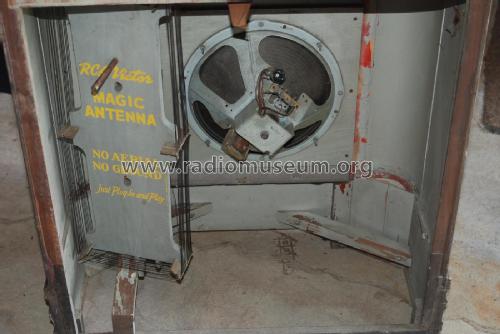

K80 Ch= RC-415C; RCA RCA Victor Co. (ID = 1935304) Radio

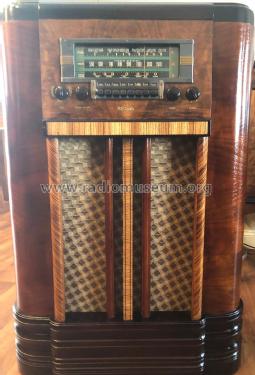

RCA RCA Victor Co.: K80 Ch= RC-415C [Radio] ID = 1935304 1400x1912
Select picture or schematic to display from thumbnails on the right and click for download.
For model K80 Ch= RC-415C With Loop Antenna, RCA (RCA Victor Co. Inc.); New York (NY):
My recently restored RCA-K80 from the front.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SA7 6K7 6SQ7 6SF5 6U5 or 6G5 6F6G 6F6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: K80 Ch= RC-415C [With Loop Antenna] - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 28 x 42.375 x 14.75 inch / 711 x 1076 x 375 mm
Notes This model with chassis RC-415C has a tuning indicator tube. Model K-80 with chassis RC-415D does not have the tuning indicator tube.
Net weight (2.2 lb = 1 kg) 61 lb (61 lb 0 oz) / 27.694 kg
External source of data Ernst Erb

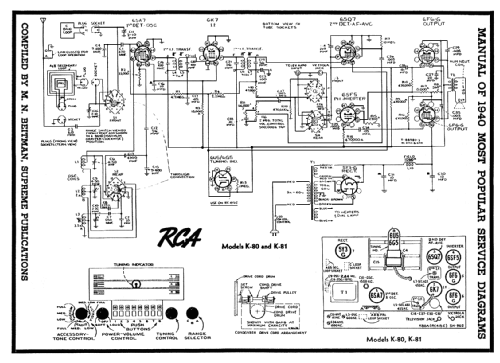

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before

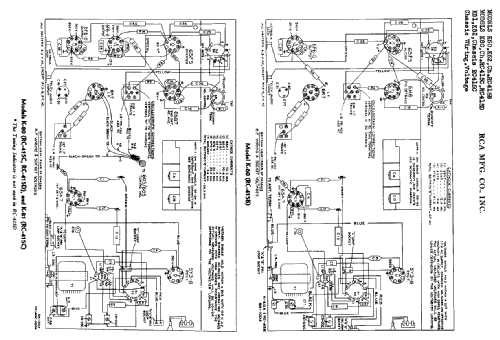

Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
