Ch= KCS131 C, D, E, T, U, W

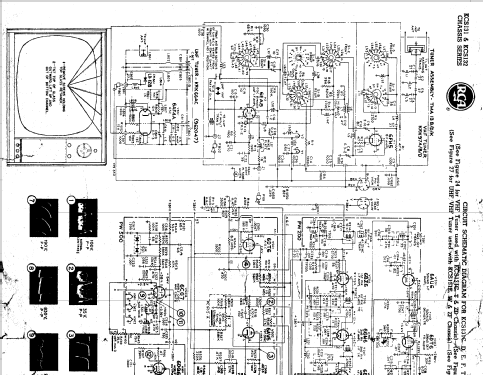

Ch= KCS131 C, D, E, T, U, W; RCA RCA Victor Co. (ID = 1569824) Television

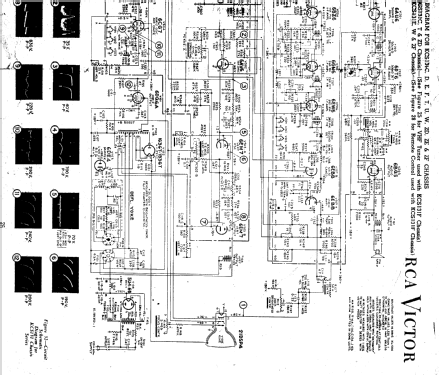

Ch= KCS131 C, D, E, T, U, W; RCA RCA Victor Co. (ID = 1569825) Television
Ch= KCS131 C, D, E, T, U, W; RCA RCA Victor Co. (ID = 1564289) Television
Use red slider bar for more.
Ch= KCS131 C, D, E, T, U, W; RCA RCA Victor Co. (ID = 1564289) Television
RCA RCA Victor Co.: Ch= KCS131 C, D, E, T, U, W [Television] ID = 1564289 720x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ch= KCS131 C, D, E, T, U, W, RCA (RCA Victor Co. Inc.); New York (NY):
Picture from Sams Photofact 1961, Set 527, Folder 2

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1961 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6FH5 6EA8 6AF4A 6CG7 6DQ6A 1G3GT 6DE4 5U4GB 6EM7 6AV6 6DT6 6EB8 6EW6 6GM6 6BZ6 6AU6 6DT6 6BQ5 21DSP4
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Ch= KCS131 C, D, E, T, U, W - RCA RCA Victor Co. Inc.; New
Notes

Tuner Assembly - TMA 13 B/D/K.
VHF TUNER, KRK97A/B/D.
UHF TUNER, KRK66AC (962047).



Mentioned in Photofact Folder, Howard W. SAMS (1961, Set 527, Folder 2)
Literature/Schematics (1) ROU: Revista "Corriente Alterna" Nº 499

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
