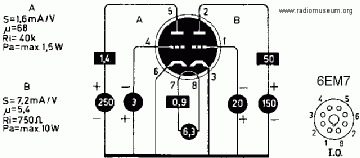

6EM7

Information - Help
ID = 4818



Tube type:  Double Triode
Identical to 6EM7 = 6EA7
Similar Tubes
Heater different:
  10EM7 ; 13EM7 ; 15EA7

Base Octal (Int.Octal, IO) K8A, USA 1935
Filament Vf 6.3 Volts / If 0.925 Ampere / Indirect / Specified voltage AC/DC
Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973

6EM7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Anonymous 10 Collector

oc76_g_19.gif 6EM7: RTT Schwandt
Günther Stabe † 19.8.20

More ...

Just Qvigstad
6EM7: RCA Tube Manual
Peter Hoddow

More ...
Usage in Models 4= 1960?? ; 38= 1960 ; 1= 1961?? ; 2= 1961? ; 51= 1961 ; 2= 1962?? ; 1= 1962? ; 34= 1962 ; 1= 1964? ; 1= 1965?? ; 1= 1965 ; 1= 1966?? ; 1= 1966? ; 1= 1967?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):139
