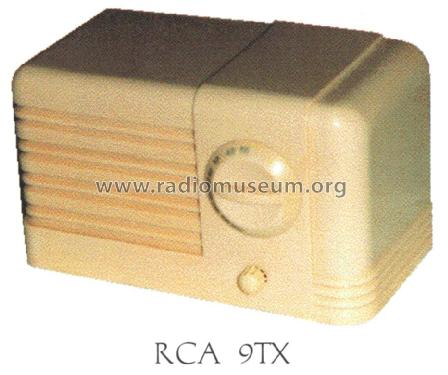

9TX-2 "Little Nipper -2nd"

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 49009
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 9TX-2 "Little Nipper -2nd" - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 8.5 x 5 x 4.2 inch / 216 x 127 x 107 mm
  • Notes

  • Molded cabinet, ivory finish, ivory dial and knob.

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Price in first year of sale
  • 13.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Mentioned in
  • Sideli: Classic Plastic Radios...
  • Literature/Schematics (1)
  • RCA Victor Instruments Service Notes 1938
