- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1950 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 248359
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Audio Engineering - October 1948 - Page 26
Audio Engineering - October 1948 - Page 26
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- 104-125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: MI-12295 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-

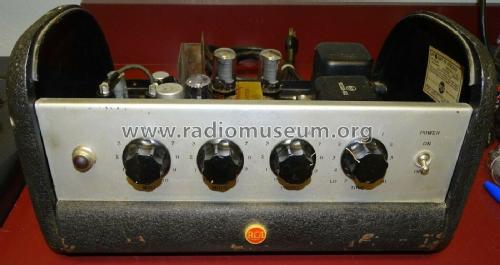

AC Operated 4 Channel Amplifier MI-12295.
2 high impedance microphone inputs and 2 high impedance phono inputs.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol.9/50 Date 3-50 89-12 Set 89 Folder 12)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
