R-98 Victrola Ch= RS-77

R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 141158) R-Player

R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 141170) R-Player

R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 141388) R-Player

R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 988676) R-Player

R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 988677) R-Player
R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 853621) R-Player R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 853622) R-Player
R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 853623) R-Player R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 853624) R-Player
Use red slider bar for more.
R-98 Victrola Ch= RS-77; RCA RCA Victor Co. (ID = 853621) R-Player

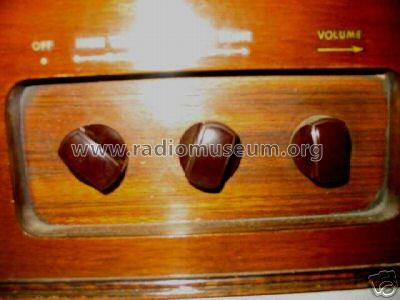

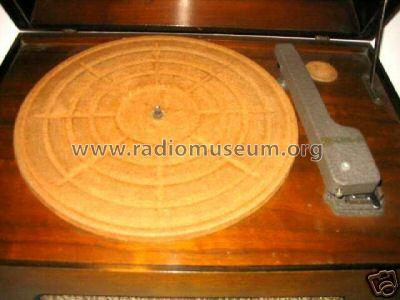

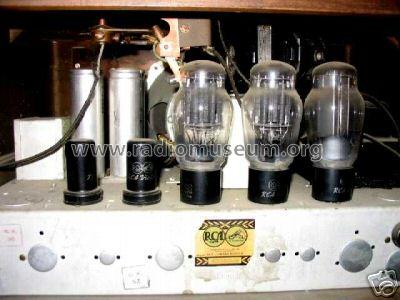

RCA RCA Victor Co.: R-98 Victrola Ch= RS-77 [R-Player] ID = 853621 300x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-98 Victrola Ch= RS-77, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: 6J5 6J5 2A3 2A3 5U4G
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 12 W (unknown quality)
from Radiomuseum.org Model: R-98 Victrola Ch= RS-77 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 19.5 x 14.5 x 14 inch / 495 x 368 x 356 mm
Net weight (2.2 lb = 1 kg) 47.5 lb (47 lb 8 oz) / 21.565 kg
Price in first year of sale 79.95 USD
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
