Radiola RS

Radiola RS; RCA RCA Victor Co. (ID = 1027646) Radio

Radiola RS; RCA RCA Victor Co. (ID = 1202467) Radio

Radiola RS; RCA RCA Victor Co. (ID = 298408) Radio

Radiola RS; RCA RCA Victor Co. (ID = 298410) Radio

Radiola RS; RCA RCA Victor Co. (ID = 298411) Radio

Radiola RS; RCA RCA Victor Co. (ID = 298413) Radio

Radiola RS; RCA RCA Victor Co. (ID = 298414) Radio
Radiola RS; RCA RCA Victor Co. (ID = 2350495) Radio Radiola RS; RCA RCA Victor Co. (ID = 309320) Radio
Radiola RS; RCA RCA Victor Co. (ID = 309322) Radio Radiola RS; RCA RCA Victor Co. (ID = 309317) Radio
Radiola RS; RCA RCA Victor Co. (ID = 309321) Radio Radiola RS; RCA RCA Victor Co. (ID = 309315) Radio
Radiola RS; RCA RCA Victor Co. (ID = 309316) Radio Radiola RS; RCA RCA Victor Co. (ID = 309318) Radio
Radiola RS; RCA RCA Victor Co. (ID = 309319) Radio Radiola RS; RCA RCA Victor Co. (ID = 1253937) Radio
Use red slider bar for more.
Radiola RS; RCA RCA Victor Co. (ID = 2350495) Radio

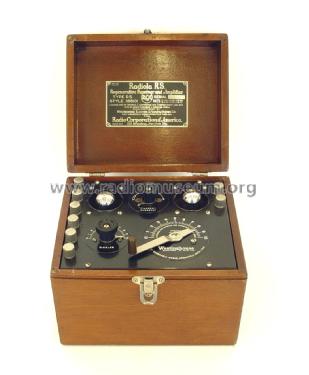

RCA RCA Victor Co.: Radiola RS [Radio] ID = 2350495 1400x1698
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola RS, RCA (RCA Victor Co. Inc.); New York (NY):
Collection privée (réf.:128)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: WD11 WD11
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Radiola RS - RCA RCA Victor Co. Inc.; New

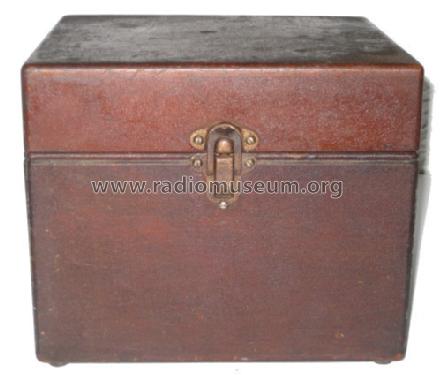

Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 215 x 175 x 185 mm / 8.5 x 6.9 x 7.3 inch

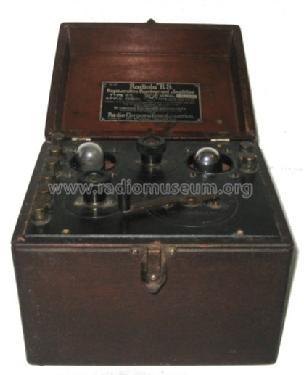

Notes Essentially the Radiola RS is an Aeriola Sr. plus a one stage amplyfier. Radiola RS can be considered as forerunner of the Radiola III.
For Radiola RS RCA made an interesting text which we show in the link entirely. Here you see a small part of it:

Standard Equipment of Radiola RS
The standard equipment of the Radiola RS consists of the following three items:
1 Single-circuit regenerative receiver with one stage of, audio amplification mounted in a mahogany cabinet, 2 Radiotron dry cell vacuum tubes, type WD-11 and 1 Telephone headset.

Additional Equipment Necessary:
It is necessary to have the following additional equipment for the installation and operation of the Radiola RS. 2 x No. 6 Dry cells; 2 x 22½ volt radio "B" batteries and 1 Complete set of antenna material.

Other sources of filament current than the dry cell mentioned above may be used if desired. Sources suggested are a single two volt lead storage cell or three Edison primary cells connected in series. When either of these sources are used, the posts marked "+A1" and "+A2" should be connected together.

For convenience to purchasers and to meet the requirements of the Fire Underwriters it is recom¬mended that the Radio Corporation of America antenna package, as specified above, be obtained since it contains approved equipment and directions for the installation of a proper out-door antenna.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 85.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Radio Manufacturers of the 1920's, Vol. 3
