2C527 Ch= RC-1120 not real
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53363
-
- alternative name: RCA Manufacturing || Victor Talking Machine

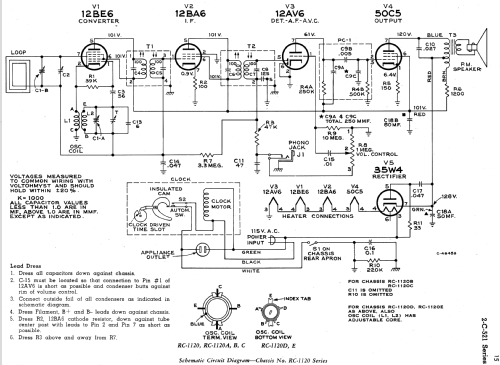

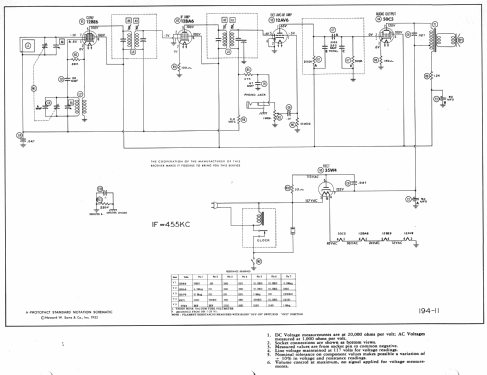

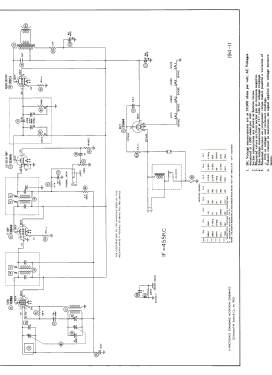

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2C527 Ch= RC-1120 [not real] - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 11.8 x 6.1 x 5.5 inch / 300 x 155 x 140 mm
- Notes
- Caution!
This model should not exist in reality. It is a hypothetical combination of case and chassis, by misreading of service documentation.

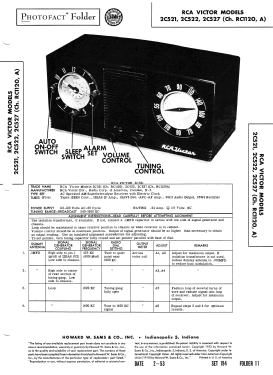

There are three case variations: Model 2C521 is maroon, 2C522 is ivory, and 2C527 is of white color.
There are two basic chassis: RC 1120(-1) for the maroon set, and RC1120-A for the ivory and white sets.

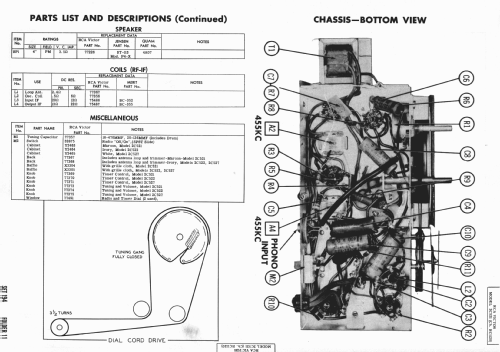

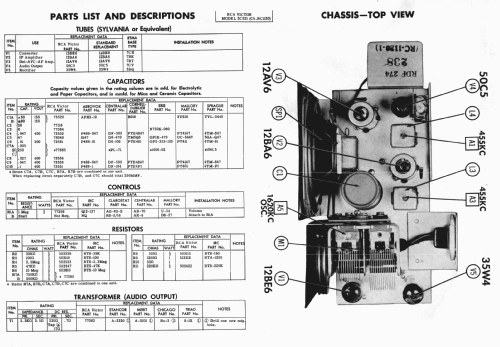

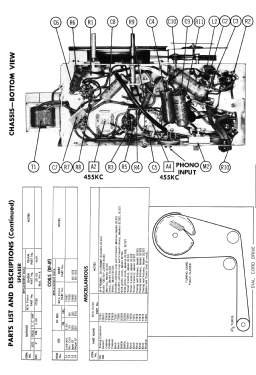

By obviously technical reason the tube locations of the Demodulator/1st af and the output tube had been interchanged. The 50C5 was moved towards the speaker, and the 12AV6 closer to the IF-transformer L4.
The revised chasses received new designations: RC1120 became RC1120-B, and RC1120-A became RC1120-C.
That results in six different Model/Chassis combinations. Six more combinations could be derived theoretically by misinterpretation of service documentation. We list them with appropriate warning remark to avoid future errors.
the real models are:
- 2C521 Ch= 1120-1 (with or without suffix),
- 2C521 Ch= 1120-B,
- 2C522 Ch= 1120-A,
- 2C522 Ch= 1120-C,
- 2C527 Ch= 1120-A,
- 2C527 Ch= 1120-C.
Any other combination is not real.
Unfortunately Beitman ignored the existence of models RC522 & RC527, and allocated all four Chassis numbers to RC521. That is obviously incorrect.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- External source of data
- Ernst Erb
- Other Models
-
Here you find 5126 models, 3229 with images and 4161 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
