3-RF-91 "Woodland" Ch= RC1129
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53418
-
- alternative name: RCA Manufacturing || Victor Talking Machine

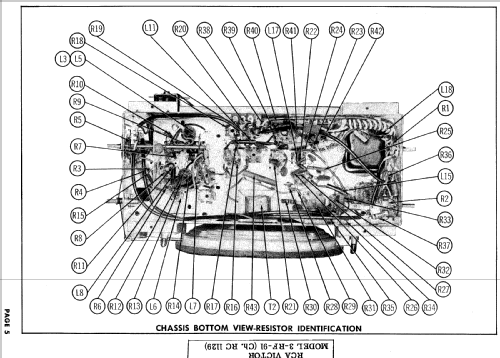

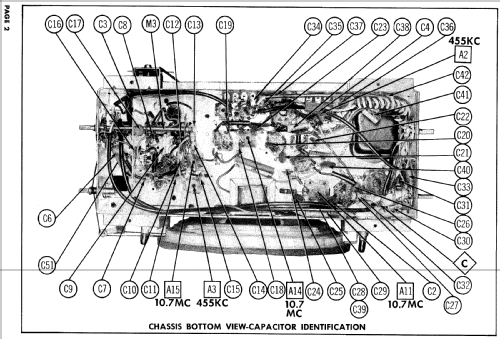

Sams Photofact Folders reference picture.

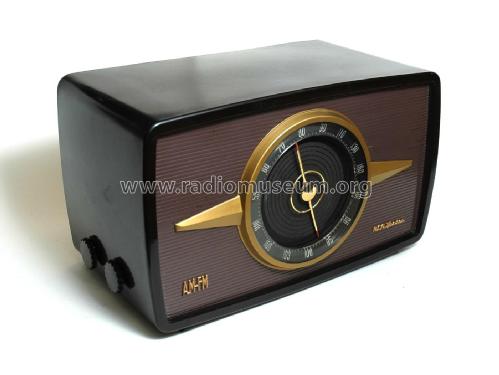

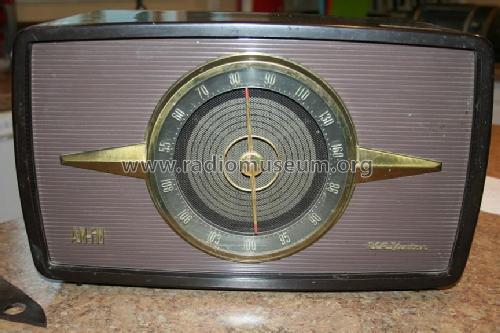

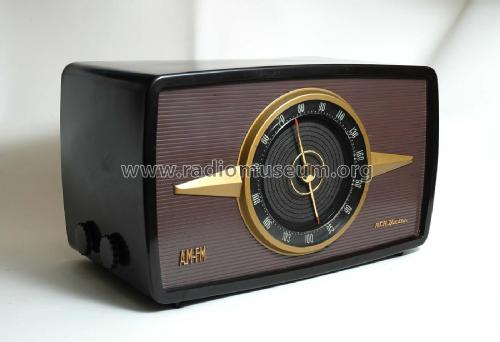

Radio as received from eBay seller.

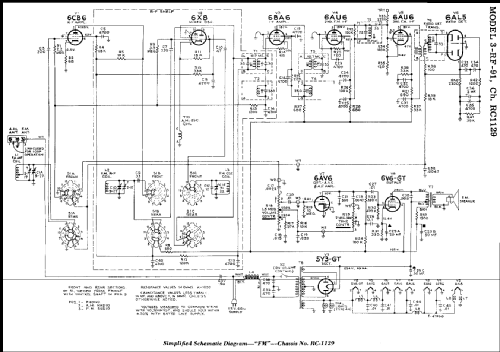

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 3-RF-91 "Woodland" Ch= RC1129 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.5 x 10 x 9 inch / 419 x 254 x 229 mm
- Notes
- Color=Maroon.
- Net weight (2.2 lb = 1 kg)
- 8.6 kg / 18 lb 15.1 oz (18.943 lb)
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-54, Set 226, Folder 6)
- Other Models
-
Here you find 5118 models, 3224 with images and 4151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Collections
The model 3-RF-91 "Woodland" is part of the collections of the following members.
Forum contributions about this model: RCA RCA Victor Co.: 3-RF-91 "Woodland" Ch= RC1129
Threads: 1 | Posts: 6
I have a 3-rf-91 that has random volume increases. It will sudenly get louder and stay that way for five minuets or so then jump back to normal volume again. Also When it Has been playing for 30 minuets it will start crackling just on the fm band.If any one has any idea what could be causing these problems, pleas post.
Wyatt CIRCO, 18.Jan.09
