9W102 Ch= RC-618D
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54087
-
- alternative name: RCA Manufacturing || Victor Talking Machine

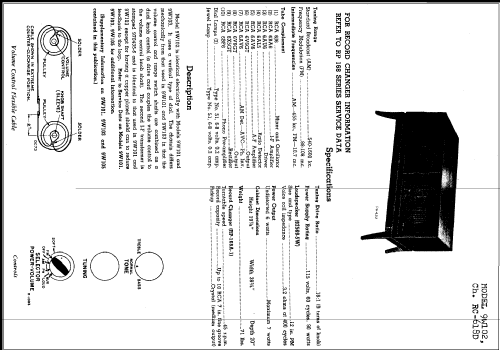

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9W102 Ch= RC-618D - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 38.7 x 19.8 x 20 inch / 983 x 503 x 508 mm
- Notes
- Record Changer RP-168A-1, 45rpm, crystal pickup.
- Net weight (2.2 lb = 1 kg)
- 32.2 kg / 70 lb 14.8 oz (70.925 lb)
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
