SHC-8 Ch= RC-1155AX + RS-171
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158163
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SHC-8 Ch= RC-1155AX + RS-171 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
- The RCA Model SHC-8 is an AC operated FM-AM Tuner (Ch. RC-1155AX) with Amplifier (Ch. RS-171) and Changer RP-205C-2X or RP-205E-2X.
- Literature/Schematics (1)

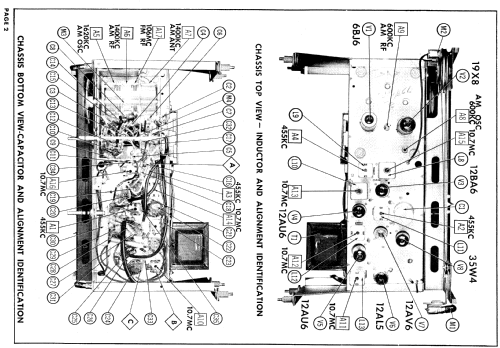

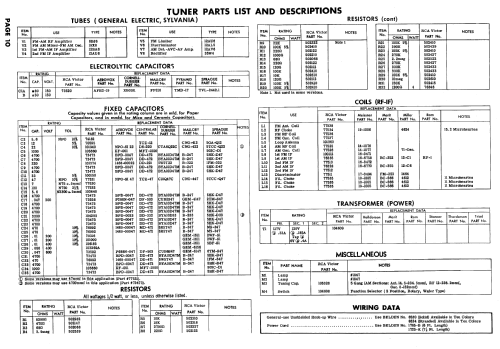

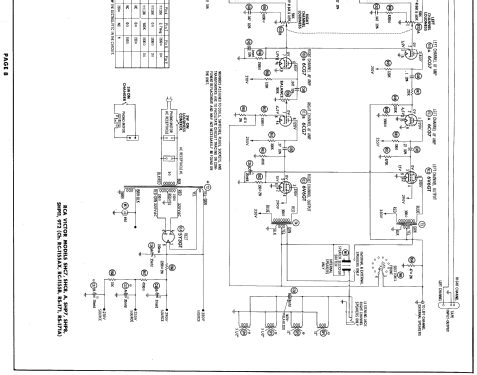

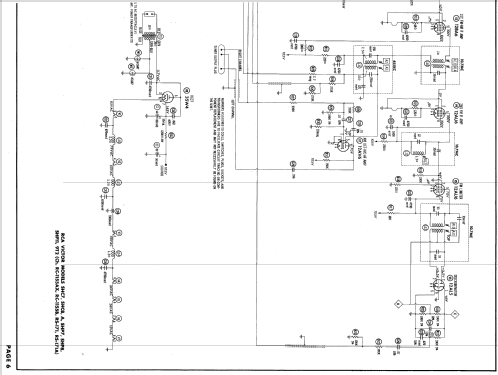

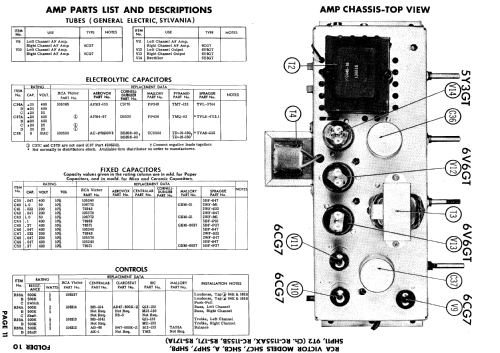

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 440, Folder 10)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
