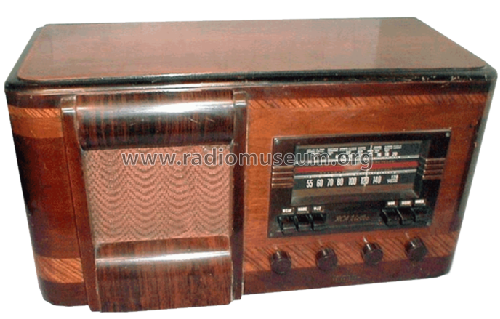

T62 Ch= RC-425D; RCA RCA Victor Co. (ID = 257301) Radio T62 Ch= RC-425D; RCA RCA Victor Co. (ID = 607433) Radio
Use red slider bar for more.
T62 Ch= RC-425D; RCA RCA Victor Co. (ID = 2059750) Radio
RCA RCA Victor Co.: T62 Ch= RC-425D [Radio] ID = 2059750 1400x859
Select picture or schematic to display from thumbnails on the right and click for download.
For model T62 Ch= RC-425D, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 6F6G 6U5 or 6G5 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 2.2 W (unknown quality)
from Radiomuseum.org Model: T62 Ch= RC-425D - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 19 x 10.375 x 8.5 inch / 483 x 264 x 216 mm
Notes This model has 3 power supply ratings:
Rating A...105-125V, 50-60 Cycles
Rating B...105-125V, 25-60 Cycles
Rating C...100-130;140-160;195-250V, 40-60 Cycles
Net weight (2.2 lb = 1 kg) 16 lb 11 oz (16.688 lb) / 7.576 kg
Price in first year of sale 37.95 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Here you find 4928 models, 2898 with images and 4002 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
RCA RCA Victor Co.: T62 Ch= RC-425D
Threads: 1 | Posts: 9
Hits: 418     Replies: 8
rca: Pictures of RCA T-62 with decals
Wendy Dodd
13.Apr.20
  1

I am restoring an RCA T-62 that has no decals. I would like to make new ones but I have no reference for which ones were present and what they looked like. The pictures shown for this model do not have a clear image of any decals. In addition there seem to be few pictures on the web.

Does anyone have a picture of the face showing the original decals?



Also side question, does anyone have a source for that wavy grille cloth that came with the original?



Rolf Beckers
14.Apr.20
  2

Dear Wendy,

Please have a look  to RadioDaze.com and you will find the RCA Victor

decals in all sizes.

Regards,

Rolf

Wendy Dodd
14.Apr.20
  3

Thanks Rolf for your reply. I am in contact with RadioDaze and have looked at their decals.

The problem is I have no reference for which decals were present on this model.Thus I am searching for images that show them, even if it a B&W image from a catalog or sales brochure.



Wendy

Rolf Beckers
14.Apr.20
  4

Dear Wendy,



On picture 6 and 8 of the model webside you can see the original RCA Victor logo. This is exactly    what you can get at RadioDaze.

Regards

Rolf

Wendy Dodd
14.Apr.20
  5

Thanks again Rolf,

I see the "Designed for Television Attachment" decal.

I am wondering if there were decals for the volume, tone, band selector, and tuning. I don't see those on any of the pictures.

When you say picture 6 & 8, to what are you referring?

Wendy

Rolf Beckers
14.Apr.20
  6

Dear Wendy,

At the model page at Radio Museum T62 Ch= RC-425D you will find several pictures on the right side. At the 6 and the 8 picture you will find the RCA Victor logo between the push buttons. I'm sure you will find all these decals you mentione, but you have to search or even ask RadioDaze vor it.

Regards,

Rolf

Wendy Dodd
14.Apr.20
  7

OK, thanks again Rolf.

I should have been more specific. My dial plate has an "RCA" logo on it that I think will clean up fine.

I will also order the decal on the bottom that reads "Designed for Television Attachment" .

I was hoping to find the labels forthe 4 controls.

Maybe there weren't any lables for the controls? Is that possible?



Wendy

Rolf Beckers
14.Apr.20
  8

Wendy

Here's another photo from a different museum. It defiantly does not show any descriptions above the knops. That means there is only the RCA Logo and the ...Television... decal.

Rolf

Attachments

Wendy Dodd
14.Apr.20
  9

That last picture sure looks like there has been no refinishing done. Thanks for bearing with me on this Rolf.

I guess I just assumed all radios had labels for their controls when they were new. Seems they didn't.



Wendy
