• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54793

• • alternative name: RCA Manufacturing || Victor Talking Machine

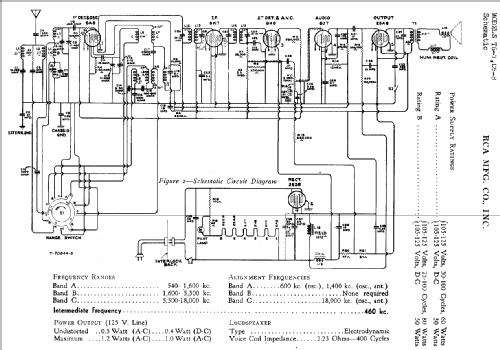

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6H6 6J7 25A6 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 0.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T6-7 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 13.7 x 19.1 x 8.5 mm / 0.5 x 0.8 x 0.3 inch

• Notes
• Same chassis as in console model C6-8.
  There are 2 power supply ratings for this model:
  Rating A...105-125VAC or VDC, 50-100 Cycles.
  Rating B...105-125VAC or VDC, 25-100 Cycles.

• Net weight (2.2 lb = 1 kg)
• 17 lb (17 lb 0 oz) / 7.718 kg

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Machine Age to Jet Age III

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (3)
• Cathedral & Tombstone Radios (page 223.)

• Other Models

• Here you find 5118 models, 3224 with images and 4151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
