T7-5 ; RCA RCA Victor Co. (ID = 2258395) Radio

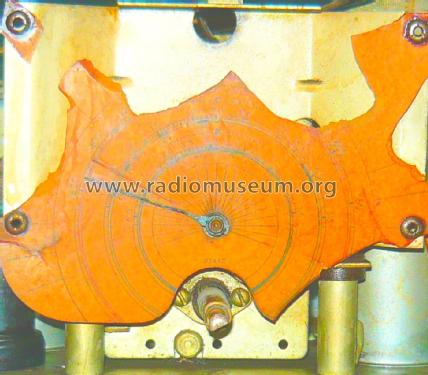

RCA RCA Victor Co.: T7-5 [Radio] ID = 2258395 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model T7-5, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7 6A8 6K7 6H6 6F5 6F6 80
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 2.25 W (unknown quality)
from Radiomuseum.org Model: T7-5 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 15.4 x 19.4 x 9.6 inch / 391 x 493 x 244 mm
Notes

This model has 3 power supply ratings: Rating A..105-125V, 50-60 cycles Rating B..105-125V, 25-60 cycles Rating C..100-130;140-160;195-250V, 40-60 cycles

Dial part number : 27412

Net weight (2.2 lb = 1 kg) 31 lb (31 lb 0 oz) / 14.074 kg
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
Literature/Schematics (2) Machine Age to Jet Age II (page 244.)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 223.)
