Two-Stage Audio Amplifier Type Triode-B

Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174801) Ampl/Mixer Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174800) Ampl/Mixer
Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174803) Ampl/Mixer Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174804) Ampl/Mixer
Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174805) Ampl/Mixer Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174806) Ampl/Mixer
Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174808) Ampl/Mixer Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174809) Ampl/Mixer
Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2427252) Ampl/Mixer
Use red slider bar for more.
Two-Stage Audio Amplifier Type Triode-B; RCA RCA Victor Co. (ID = 2174801) Ampl/Mixer
RCA RCA Victor Co.: Two-Stage Audio Amplifier Type Triode-B [Ampl/Mixer] ID = 2174801 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Two-Stage Audio Amplifier Type Triode-B, RCA (RCA Victor Co. Inc.); New York (NY):
eBay item number:142578185211 The amp pictured was sold on eBay for $700.00 on 11/19/17.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1919 ? Category: Audio Amplifier or -mixer
Valves / Tubes 2: UV201 UV201
Conflicting model year with tube data.
The model date contradicts tube dates. [ UV201 (1920)]
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries / 6 & 40 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Two-Stage Audio Amplifier Type Triode-B - RCA RCA Victor Co. Inc.; New

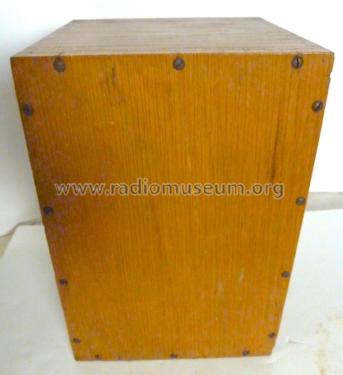

Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

With the formation of RCA in 1919 the new RCA cross-licensing agreement allowed United Fruit/Wireless Specialty Apparatus to now produce the SE-1420 for commercial users and have them sold by RCA (RCA hadn't created a division specifically to handle all maritime equipment and operate coastal communications stations - yet.). For the new commercial market, the designation of the receiver was changed to IP-501. A matching two-stage audio amplifier was now available, the Triode Type-B Amplifier.

The device was advertised in Atlantic Radio Co.'s 1919 Catalog.

Model page created by Alan Larsen. See "Data change" for further contributors.
