• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54857
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: U-130 - RCA RCA Victor Co. Inc.; New
  • Shape

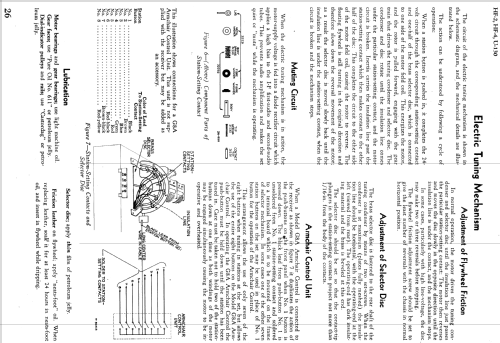

  • Console with Push Buttons.
  • Dimensions (WHD)
  • 36.2 x 34 x 17.2 inch / 919 x 864 x 437 mm
  • Notes
  • BC and 4x SW spread bands. 4 pilot lamps.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference

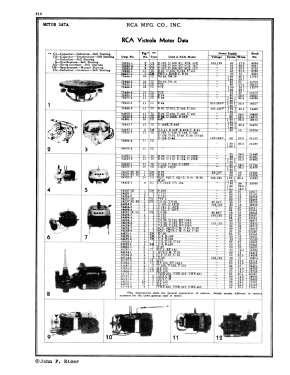

  • Rider's Perpetual, Volume 9 = 1938 and before
  • Literature/Schematics (1)

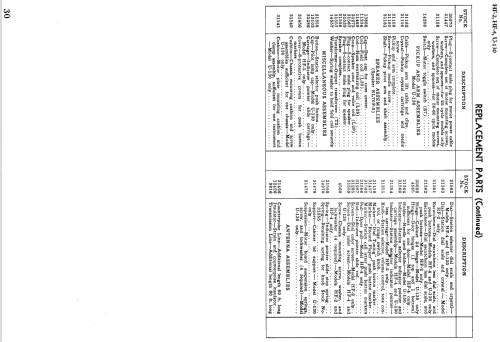

  • Pre-War Consoles (RCA Victor Service Notes for 1938)
