VHR-307 Ch= RC-555

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1049759) Radio

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1049760) Radio

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1049761) Radio

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1049762) Radio

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1049763) Radio

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 948296) Radio

VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 948295) Radio
VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1039755) Radio VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1039757) Radio
VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569032) Radio VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569043) Radio
VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569044) Radio VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569050) Radio
VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569056) Radio VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569057) Radio
VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569511) Radio VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1569512) Radio
Use red slider bar for more.
VHR-307 Ch= RC-555; RCA RCA Victor Co. (ID = 1039755) Radio
RCA RCA Victor Co.: VHR-307 Ch= RC-555 [Radio] ID = 1039755 450x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHR-307 Ch= RC-555, RCA (RCA Victor Co. Inc.); New York (NY):
Scanned from the Radio Retailing February 1941.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6SK7 6SA7 6SK7 6SK7 6U5 or 6G5 6H6 12K7GT 6SJ7 6F6G 6H6 6F6G 6F6G 5U4G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.

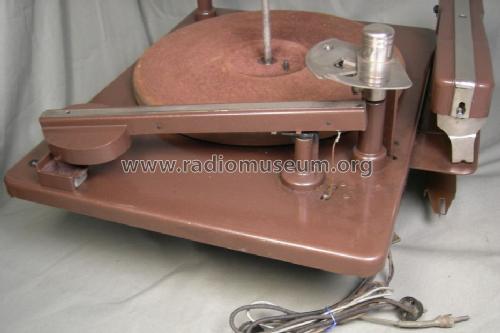

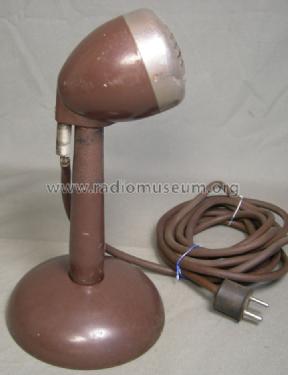

Details Recording phonogr.-Disc Recorder
Power type and voltage Alternating Current supply (AC) / 105-125 Volt

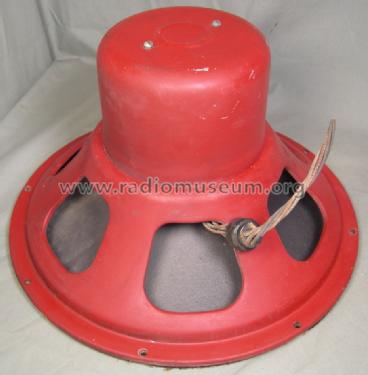

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
Power out 18 W (unknown quality)
from Radiomuseum.org Model: VHR-307 Ch= RC-555 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 38 x 36 x 20.375 inch / 965 x 914 x 518 mm
Notes

2 bias cells.

Collectors' prices
External source of data Ernst Erb
Source of data Guide to Old Radios

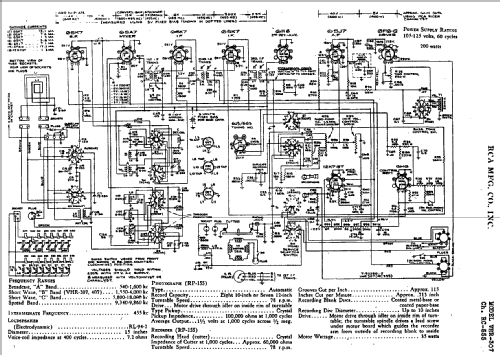

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Radio Retailing (Radio & Television R.) (February 1941.)
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
