• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1953 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 308887

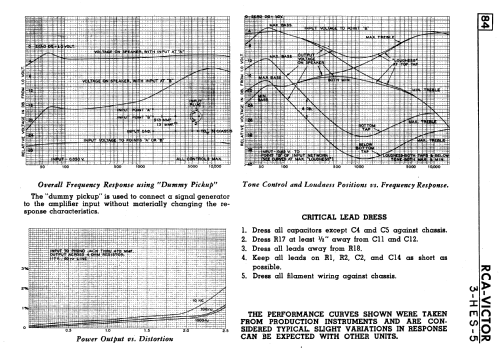

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6C4 12AX7 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3-HES-5 - RCA Victor International,

• Notes

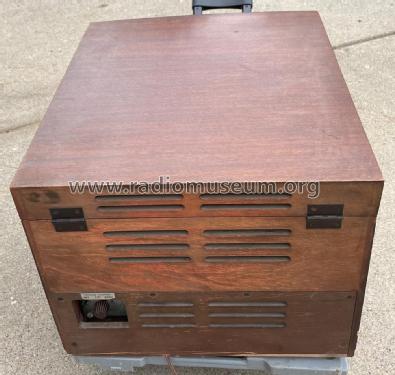

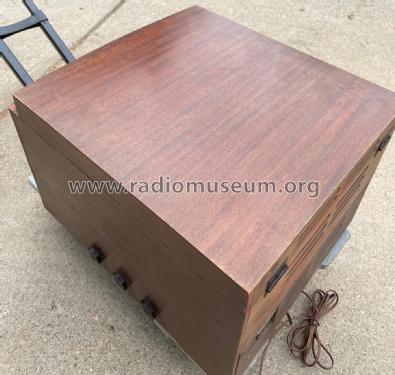

• The RCA-Victor model 3-HES-5 is a table top record player with automatic changer mechanism. Can be mounted on an accessory HF5STD floor stand. Has connections for an optional external SPK-8 speaker cabinet.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 32)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
