RCA Victor: 50 [Radio] ID = 1755694 1400x828

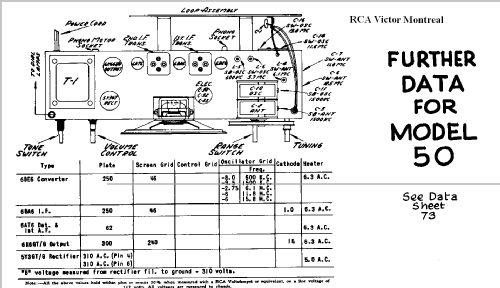

Select picture or schematic to display from thumbnails on the right and click for download.
For model 50, RCA Victor (International), Montreal

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AT6 6K6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (3 W max.)
from Radiomuseum.org Model: 50 - RCA Victor International,
Dimensions (WHD) 17 x 9.875 x 8 inch / 432 x 251 x 203 mm
Notes

The Canadian RCA Victor model 50 is a 5-tube table radio that covers standard broadcast and 5.7-13 MHz and 11.6-16 MHz shortwave. Has a 4 x 6 inch eliptical speaker.

Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Canada schematics RCA Victor page 73,74
Literature/Schematics (2) RCA Service Manual Vol 4 P. 67

Model page created by Dirk Taekels. See "Data change" for further contributors.
