51-X-1
RCA Victor; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- RCA Victor; Buenos Aires
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137025

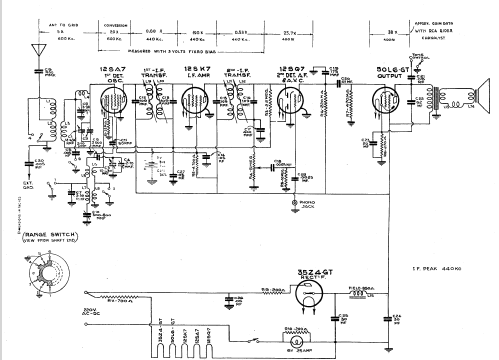

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 440 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 210/230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 51-X-1 - RCA Victor; Buenos Aires
- Shape
- Tablemodel, with any shape - general.
- Notes
- Superheterodino de mesa de ambas corrientes, 5 válvulas y dos bandas de onda: de 500 a 1550 y 5600 a 19500 Khz. Parlante electrodinámico con bobina de campo de 850 ohms.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Mario Bermejo. See "Data change" for further contributors.
