• Country
• Argentina

• Manufacturer / Brand
• RCA Victor; Buenos Aires

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163641

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

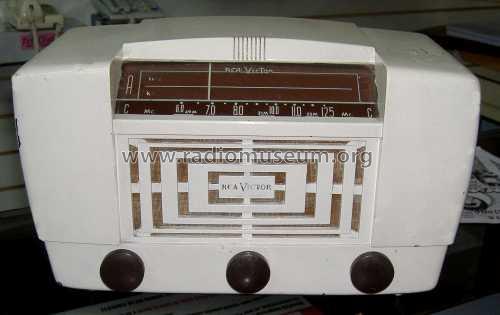

• Model: 568MX - RCA Victor; Buenos Aires

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 350 x 220 x 160 mm / 13.8 x 8.7 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Other Models

• Here you find 78 models, 62 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
