- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200521
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 1.5 W (2.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6B4 - RCA Victor International,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 26.5 x 39.5 x 12.5 inch / 673 x 1003 x 318 mm
- Notes
-
The RCA Victor model 6B4 is a 7-tube battery powered console radio. Has vibrator type B+ supply. Covers the following ranges:
Range Frequency Broadcast 540-1720 kHz 49m 5.9-6.24 MHz 31m 9.41-9.69 MHz 25m 11.68-11.92 MHz 19m 15.09-15.38 MHz
- Net weight (2.2 lb = 1 kg)
- 62 lb (62 lb 0 oz) / 28.148 kg
- Source of data
- Pre-War Consoles
- Literature/Schematics (1)

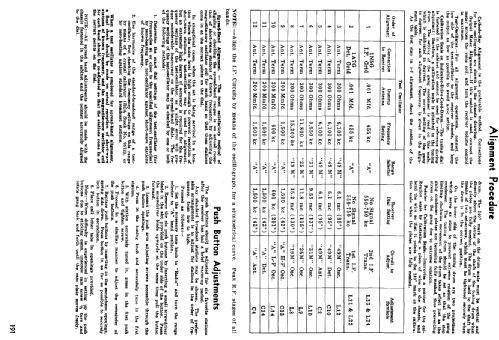

- RCA Service Manual Vol 2 P. 189
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
