- Manufacturer / Brand
- RCA Victor (International), Montreal
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-125 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Wooden case
- from Radiomuseum.org

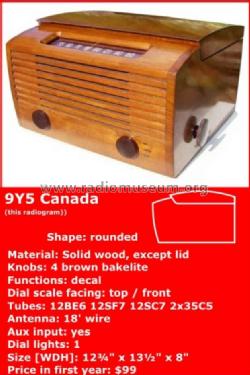

- Model: 9Y5 - RCA Victor International,
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 12.75 x 8 x 13.5 inch / 324 x 203 x 343 mm
Push-pull AF output.
- Price in first year of sale
- 99.00 $
- Mentioned in
- - - Manufacturers Literature
- Literature/Schematics (1)
- Radio College of Canada (RCC)
- Model page created by Tom Seeger. See "Data change" for further contributors.
- Other Models
Here you find 661 models, 429 with images and 606 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA Victor (International), Montreal
Forum contributions about this model: RCA Victor: 9Y5
Threads: 1 | Posts: 9
I am repairing an RCA Victor 9Y5 radio/phonograph that I beleive has silver mica disease. I need to know what capacitor values I should use for the 1st and 2nd IF transformers if I repair it. Specifically C-18, C-19 and C-9, C-10.
These values are not shown on the schematic and being new to radio repair I do not have much test equipment. I do have hand held multimeters and capacitor tester.
I was hoping that someone may have had similar experience with these type radios and could recommend the proper capacitor values. This radio is very similar to the RCA Victor console radio model 9W501.
I have read that some people replace these IF trans. with all 100pf values with good success but I'm hesitant to do so because I've seen many scematics with values as low as 30pf .
Any recommendations would be greatly appreciated. Thank you in advance.
Vincent Cappuccitti, 15.Mar.19
